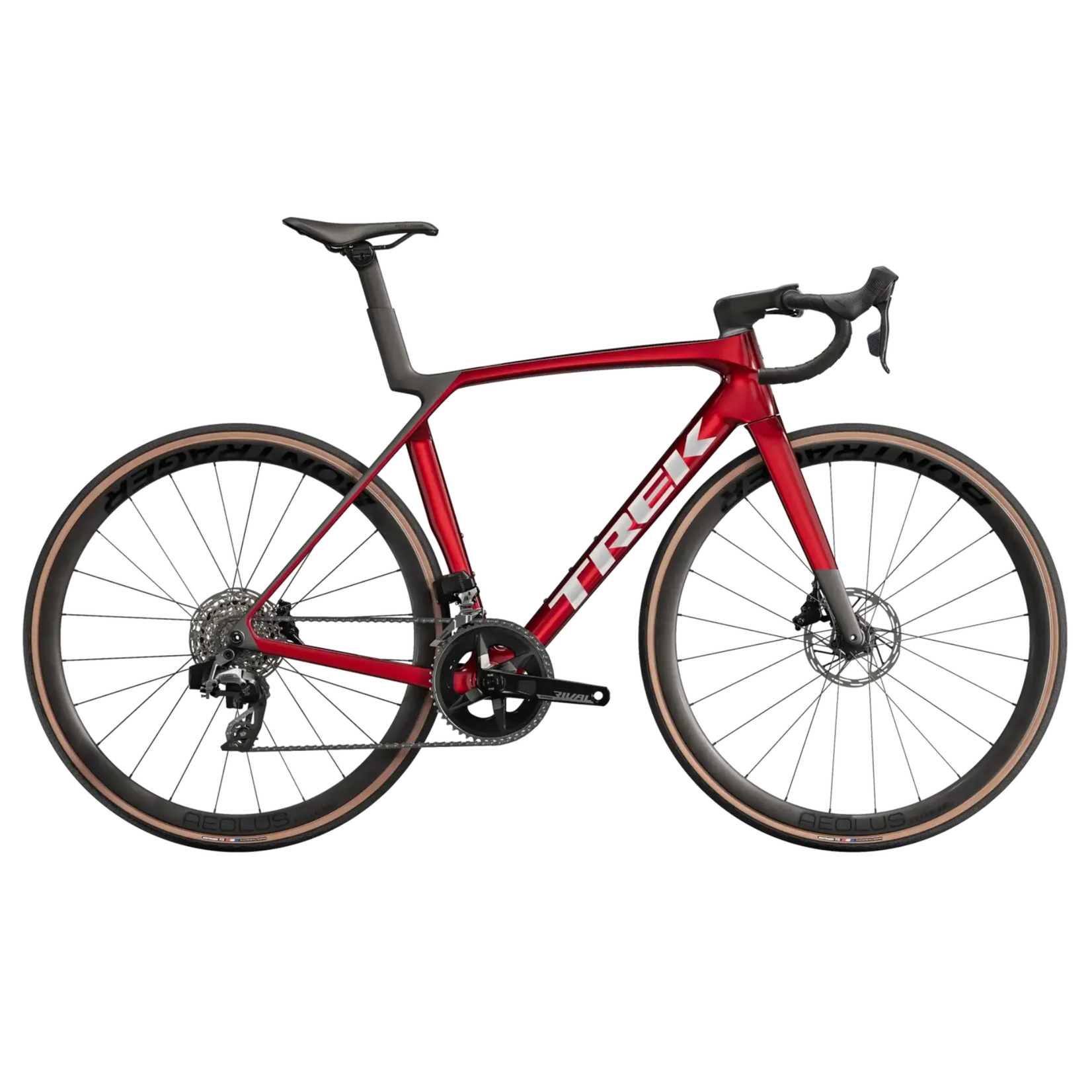

2025 Madone SL 6 AXS Gen 8

Madone SL 6 AXS Gen 8 is a lightweight aero road bike that brings elite racing tech to a lower price point. It offers similar aero benefits to the pricier Madone SLR Gen 8, but with a more economical OCLV 500 Carbon layup and two-piece cockpit with hidden cable routing. It's built to race with geometry that keeps you quick on the sprints yet in control on fast descents. For clean shifts that are fully customizable, it's decked out with SRAM's Rival AXS electronic groupset, topped off with carbon wheels for extra lightweight performance.

Frame	500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle
Fork	Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle

Weight	ML - 8.43 kg / 18.59 lbs (with TLR sealant, no tubes)
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

Battery	SRAM eTap battery pack (with charger)

Shifter	SRAM Rival eTap AXS, 12 speed
Front derailleur	SRAM Rival D1 AXS, braze-on
Rear derailleur	SRAM Rival AXS
*Crank	Size: XS, S SRAM Rival AXS w/ power meter, 48/35, DUB, 165mm length
	Size: M SRAM Rival AXS w/ power meter, 48/35, DUB, 170mm length
	Size: ML, L SRAM Rival AXS w/ power meter, 48/35, DUB, 172.5mm length
	Size: XL SRAM Rival AXS Power Meter, 48/35, DUB, 175mm length
Bottom bracket	SRAM DUB, T47 threaded, internal bearing
Cassette	SRAM XG-1250, 10-36, 12 speed
Chain	SRAM Rival, 12 speed
Max chainring size	1x: 54T, 2x: 56/43

Wheel front	Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 35 mm rim depth, 100x12 mm thru axle
Wheel rear	Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, SRAM XD-R driver, 142x12 mm thru-axle
Hub front	Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, 100x12mm thru axle
Skewer front	Bontrager Switch chamfered thru axle, removable lever
Hub rear	Bontrager Affinity Comp, SRAM XD-R freehub, 142x12mm thru axle
Skewer rear	Bontrager Switch chamfered thru axle, removable lever
Rim	Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 35mm rim depth, 100x12mm thru axle
Tire	Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 170 tpi, 700x28mm
Tire part	Bontrager TLR sealant, 180 ml/6 oz
Rim strip	Bontrager TLR
Max tire size	32mm (as measured, see manual for details)

*Saddle	Size: XS, S Bontrager Aeolus Comp, steel rails, 155 mm width
*Saddle	Size: M, ML, L, XL Bontrager Aeolus Comp, steel rails, 145 mm width
*Seatpost	Size: XS, S, M Madone aero carbon seatpost, 0mm offset, short length
*Seatpost	Size: ML, L, XL Madone aero carbon seatpost, 0mm offset, long length
*Handlebar	Size: XS Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drop width
	Size: S, M Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop width
	Size: ML, L Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop width
	Size: XL Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width
Handlebar tape	Trek EcoTack, black
*Stem	Size: XS Trek RCS Pro, -7 degree, 80mm length
	Size: S, M Trek RCS Pro, -7 degree, 90mm length
	Size: ML, L Trek RCS Pro, -7 degree, 100mm length
	Size: XL Trek RCS Pro, -7 degree, 110mm length
Brake rotor	SRAM Paceline, rounded, centerlock, 160mm
Rotor size	Max brake rotor sizes: 180mm front, 160mm rear
