YOUR FASTEST BIKE SPLIT

Everything about the Advanced SL carbon frameset has been optimized to shave seconds. The sleek, integrated hydration reservoir and bento box put fuel at your fingertips. And the new frameset is lighter by 433g, without compromising stiffness or aerodynamics, translating to 10% greater overall efficiency—which means energy left over for the run.

YOUR OPTIMIZED FIT

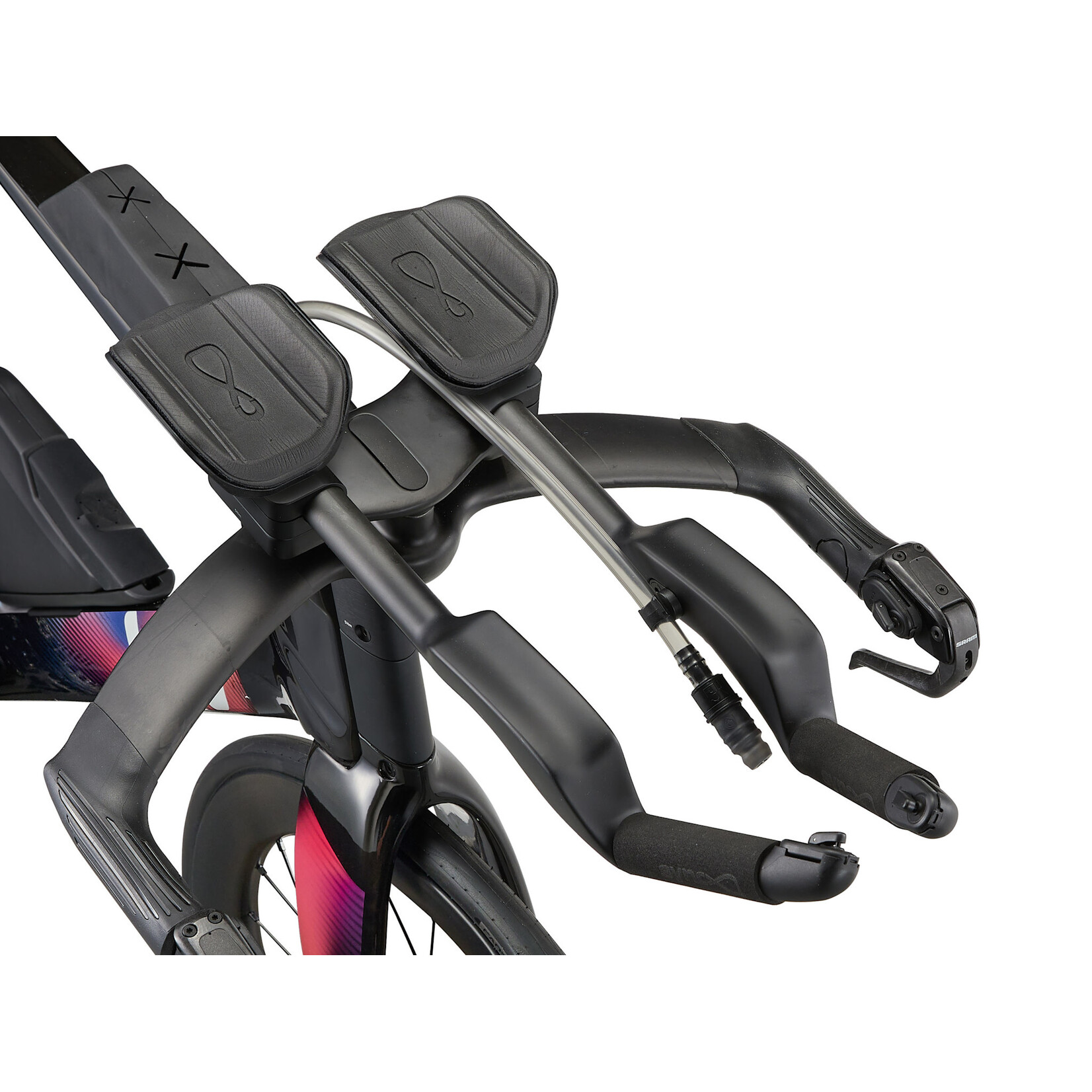

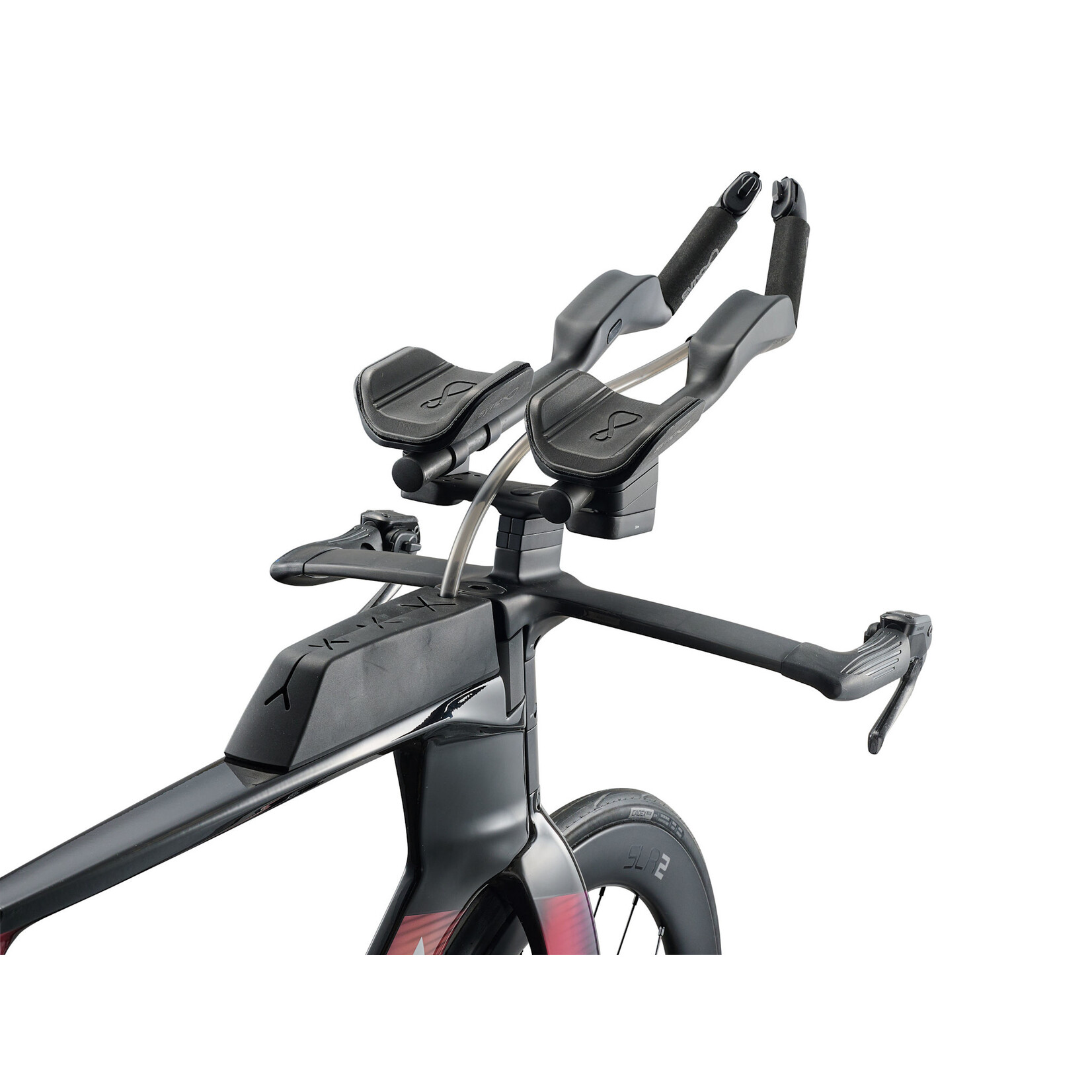

Dial in every aspect, with four seatpost offset positions (within a 51mm range) and 24x more armrest positions, varying stack, reach, angle and width, using a simple, travel-friendly two-bolt mechanism. Make it your bike for the course—more comfort for Ironman or more streamlined for TT.

YOU’RE IN CONTROL

Integrated disc brakes deliver greater stopping power without compromise to aero efficiency, thanks to fork shaping that shields the brakes from the wind. Enhanced seatpost and armrest compliance help you settle into a comfortable, confident position for 20k or 180k.

• Frame
  Advanced SL-grade composite, 12x142mm thru-axle, disc
• Fork
  Advanced SL-grade composite, full-composite steerer, 12x100mm, disc
• Shock
  N/A
• Handlebar
  AeroDrive base bar with Sync armrest set, 10- and 15-degree extension wedge
• Grips
  Liv Stratus Lite 2.0
• Stem
  AeroDrive integrated stem
• Seatpost
  Liv Avow Composite
• Saddle
  Liv Contact SL Tri
• Arm Rest Kit
  Sync armrest set
• Shifters
  SRAM eTap Clics, extension mountedSRAM eTap Blips, basebar mounted
• Front Derailleur
  SRAM Rival eTap AXS
• Rear Derailleur
  SRAM Rival eTap AXS
• Brakes
  SRAM Rival eTap hydraulic, SRAM PaceLine rotors [F]160mm, [R]140mm
• Brake Levers
  SRAM S-900 Aero hydraulic
• Cassette
  SRAM Rival XG-1250, 12-speed, 10x36
• Chain
  SRAM Rival D1
• Crankset
  SRAM Rival, 35/48 with power meter XXS: 160mm, XS: 160mm, S: 160mm, M: 165mm, L: 165mm
• Bottom Bracket
  SRAM DUB, press fit
• Rims
  Giant SLR 2 50 WheelSystem, [F]50mm, [R]50mm
• Hubs
  [F] Giant Alloy, CenterLock, 12mm thru-axle [R] Giant Alloy, 3 pawl 30t driver, CenterLock, 12mm thru-axle
• Spokes
  SAPIM Sprint
• Tires
  CADEX Aero, tubeless, 700x25c (26.5mm), folding
• Extras
  bento box top tube storage, hydration kit, computer mount, tubeless prepared, 30mm max tire size
• Max Tire Clearance

  30mm

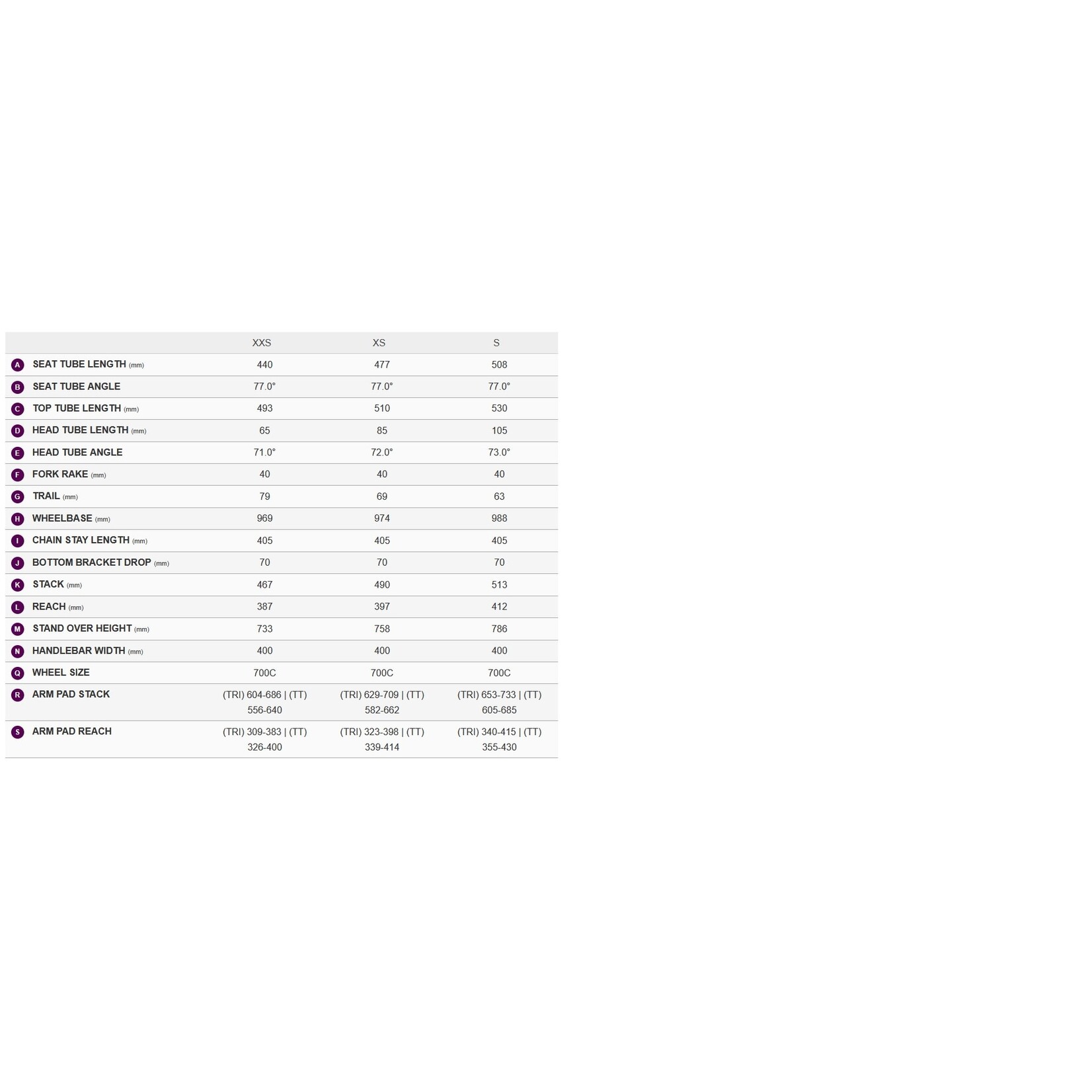

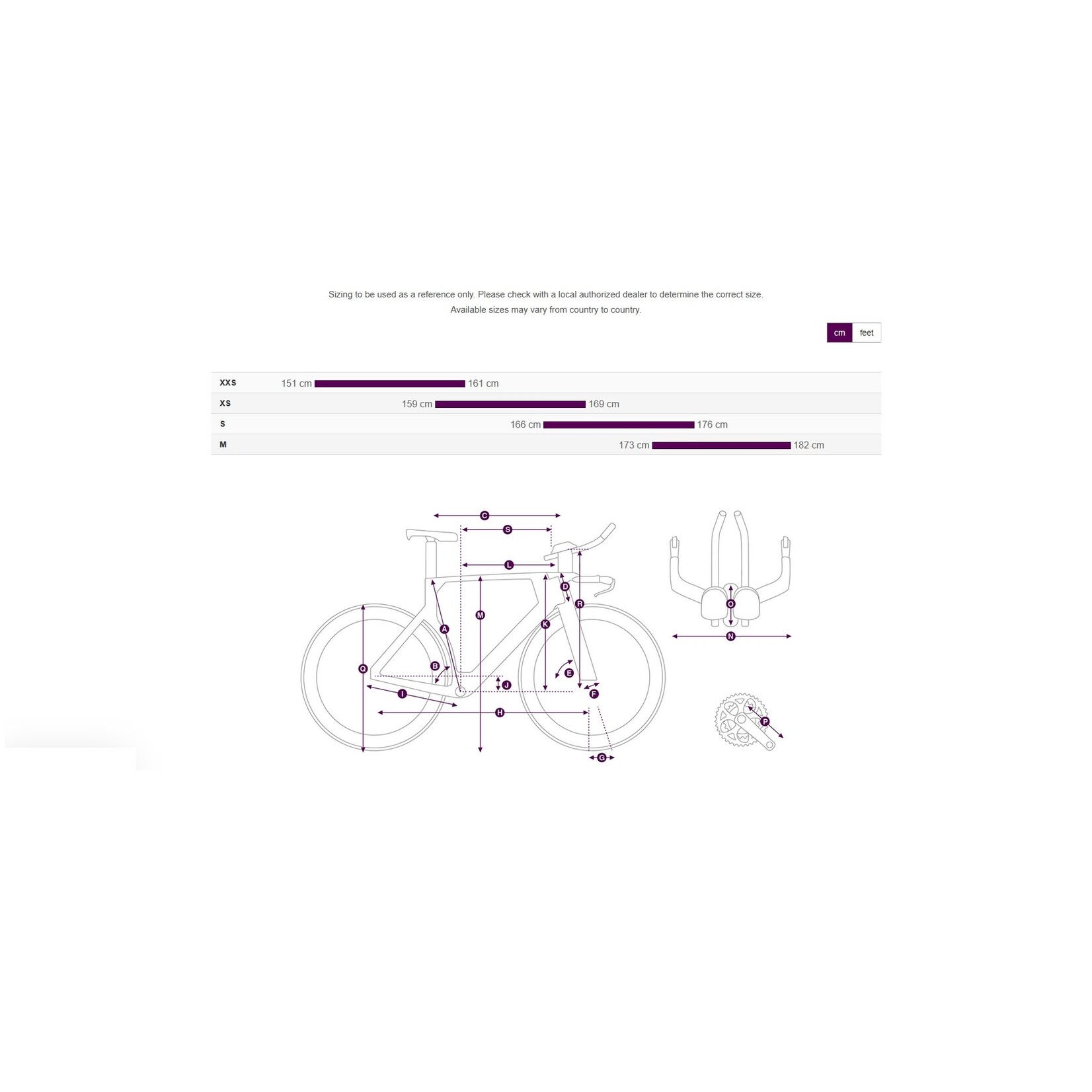

Geometry
