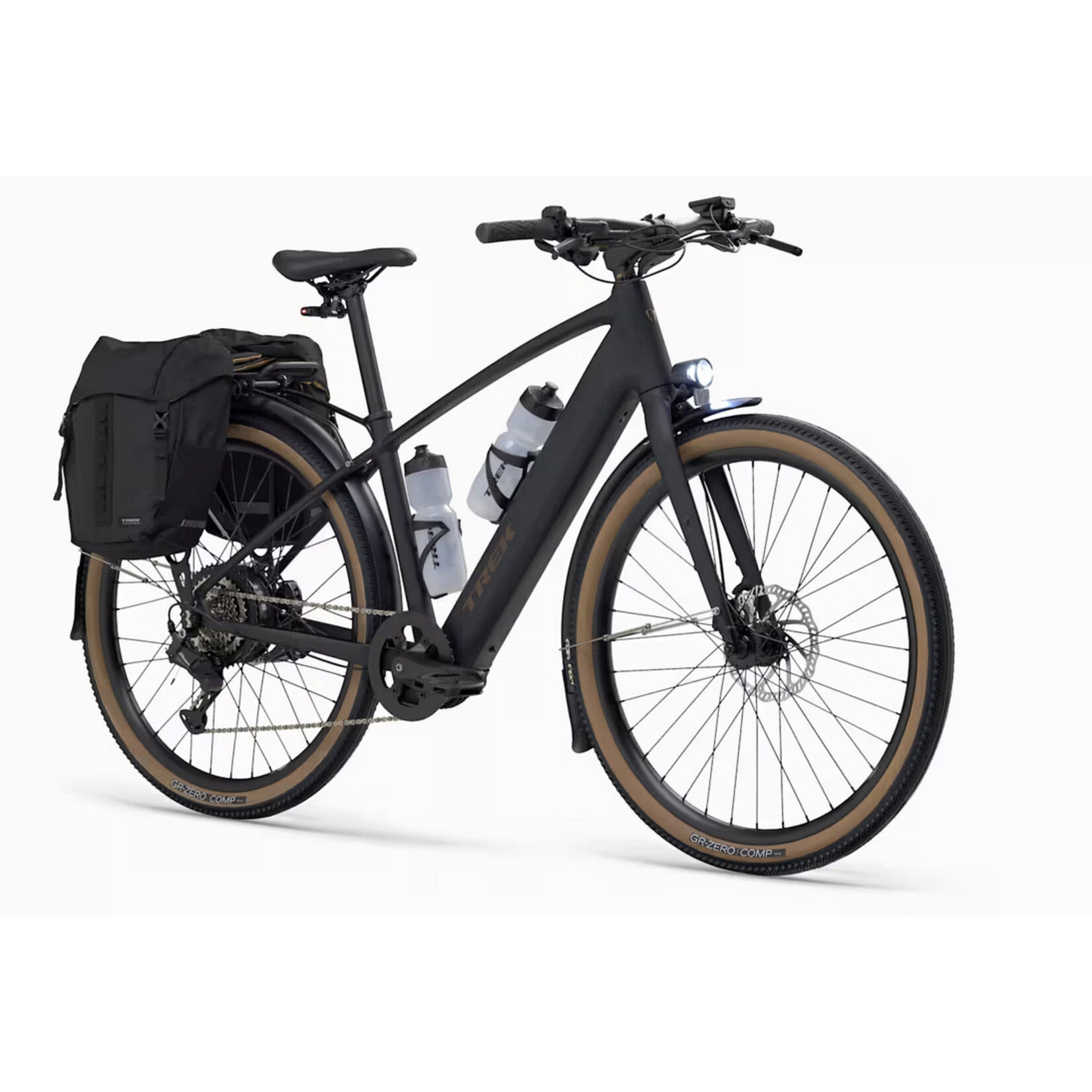

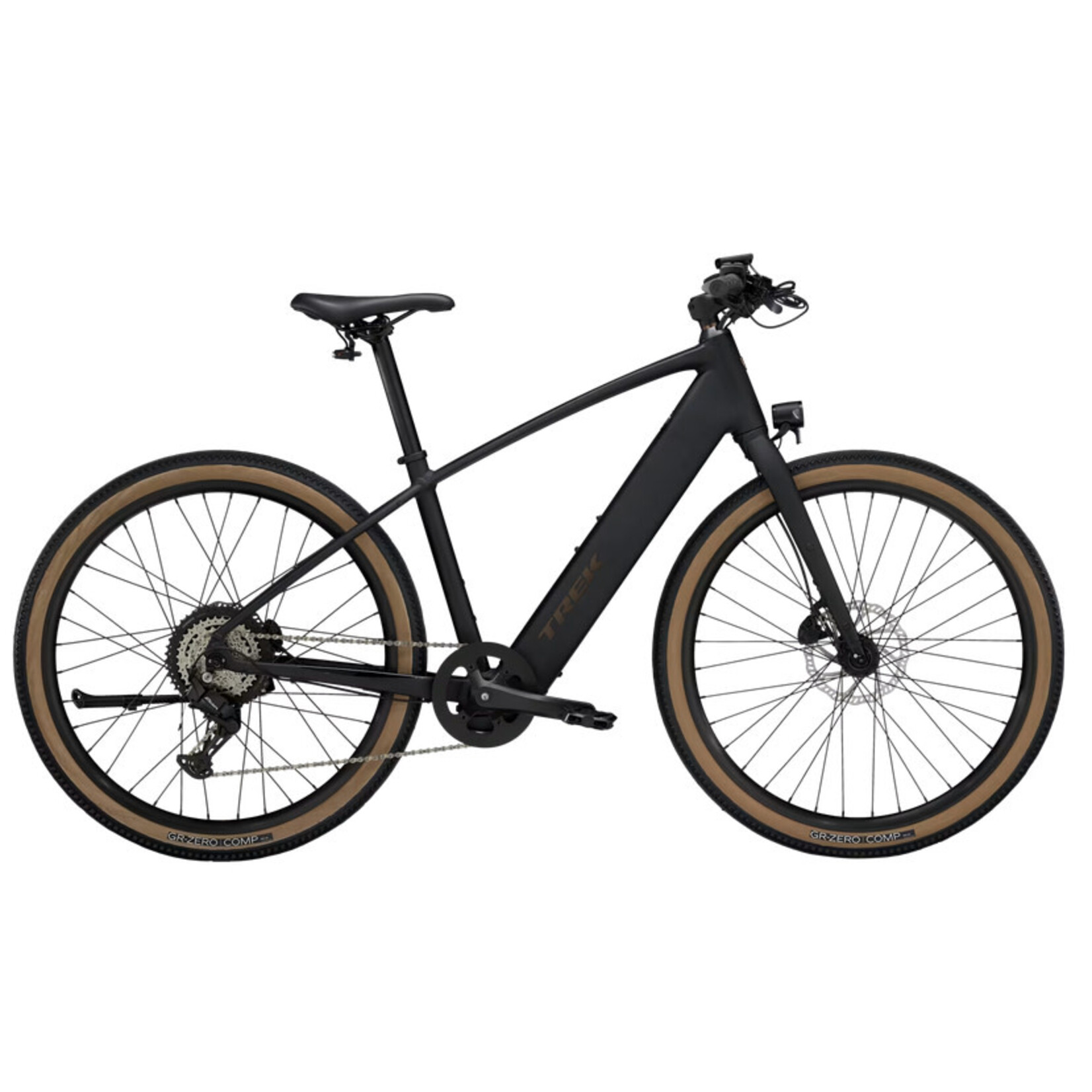

FX+ 1 is a versatile and fast throttle e-bike built for cruising through town with an ear-to-ear grin. Its handlebar throttle makes getting up to speed a breeze, and pedal assist gives you a smooth boost while you ride. Plus, an EasyMag magnetic charger with a sleek, portable wall-mounted system makes charging between rides easier than ever.
Product Video
Frameset
- Frame: Alpha Gold Aluminum, internal cable routing, internal battery, rack & fender mounts, flat mount disc brake, kickstand mount, 144.5mm OLD hub motor spacing
- Fork: Alloy, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm bolt-on skewer
Wheels
- Hub front: Alloy low-flange w/6-bolt disc, 36h, w/QR
- Skewer front: 132x5mm QR, ThruSkew
- Rim: Alloy double wall, 36h
- Tire: Bontrager GR0 Comp, wire bead, 60 tpi, 650x50mm
- Max tire size: 650x50mm
E-system
- Battery: 520Wh, integrated in down tube
- Charger: Trek Easy Mag charger, 2.7A, 54.9V output, 100V-240V AC input

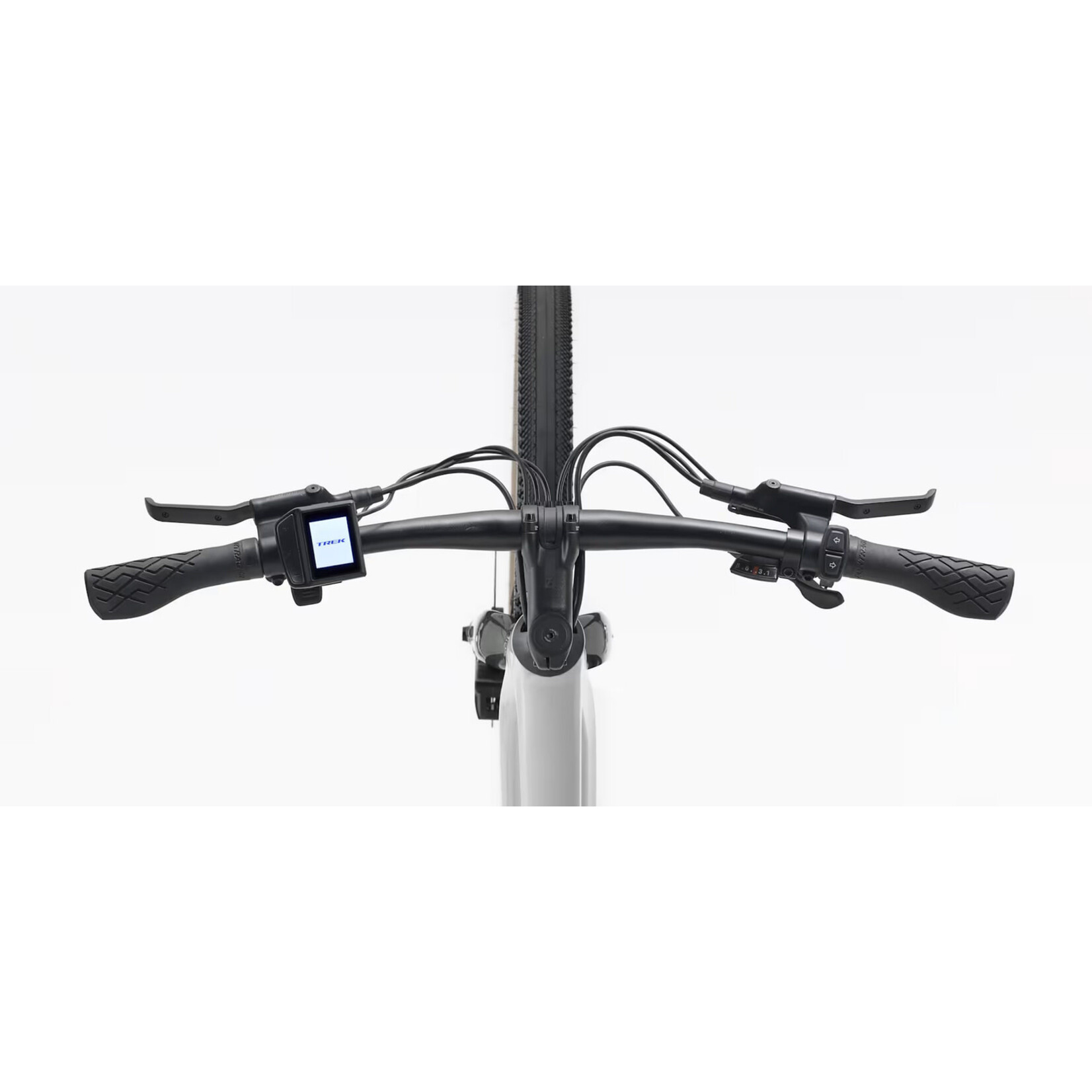

- Computer: LCD display
- Motor: Hub drive motor, 60 Nm, 500W, 36H, black
- E-bike Classification: Class 2
Drivetrain
- Shifter: Shimano M315, 8 speed
- Rear derailleur: Shimano ESSA U2000
- Crank: Alloy, 40T steel chainring, 170mm length
- Cassette: Shimano HG400, 11-45, 8 speed
- Chain: KMC Z8.3
- Pedal: Bontrager City pedals
- Max chainring size: 1x: 40T
Components
- Saddle: Bontrager Sport Women's
- Seatpost: Size: S, M: Bontrager alloy, 31.6mm, 12mm offset, 330mm length
- Size: L: Bontrager alloy, 31.6mm, 12mm offset, 400mm length

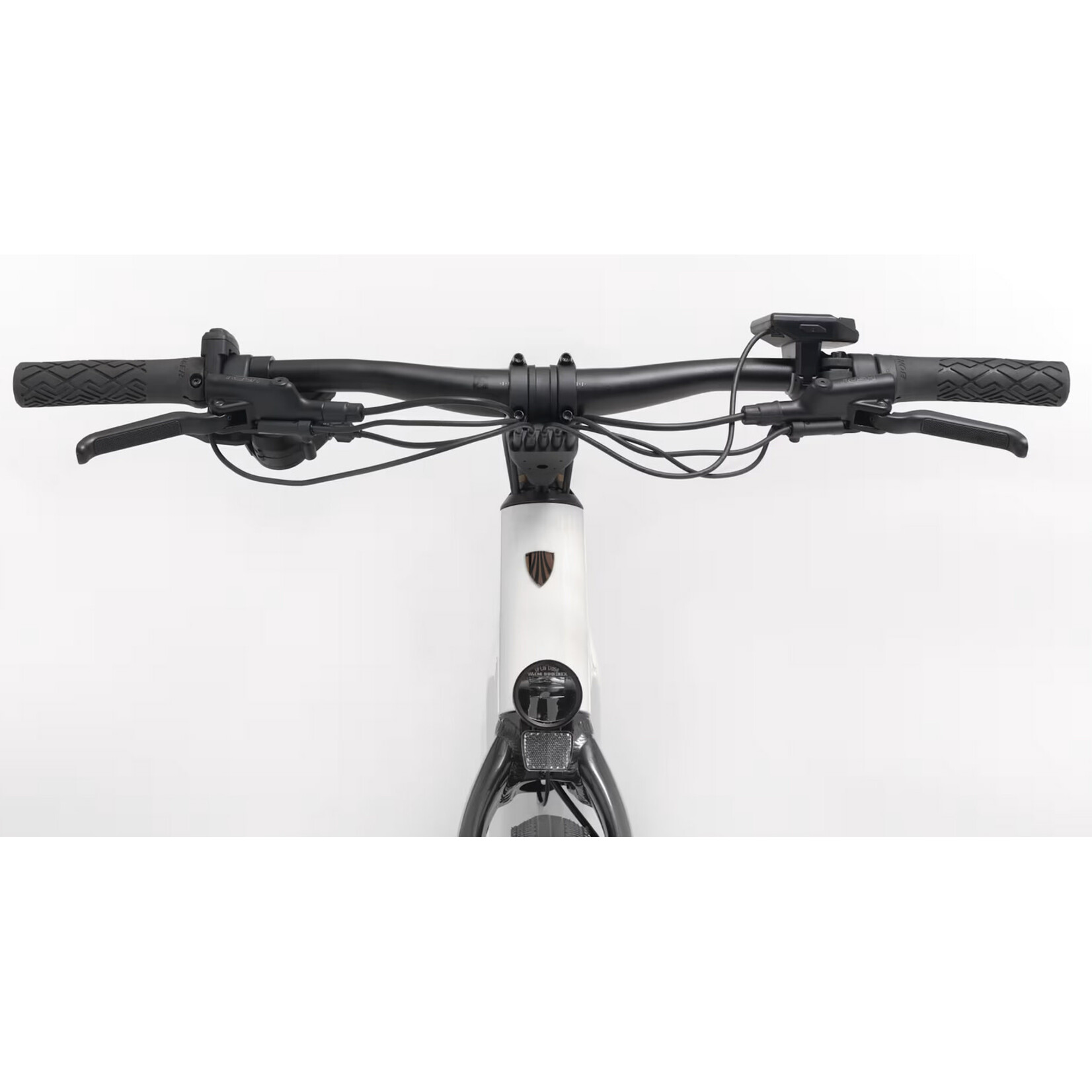

Handlebar
- Size: S, M: Bontrager alloy, 31.8mm, 15mm rise, 690mm width
- Size: L: Bontrager alloy, 31.8mm, 15mm rise, 720mm width
- Grips: Bontrager XR Endurance Comp, lock-on
Stem
- Size: S, M: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
- Size: L: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
Brake
- Rush BH-286 hydraulic disc, 180mm rotor
- Rotor size: Max brake rotor sizes: 180mm front & rear
