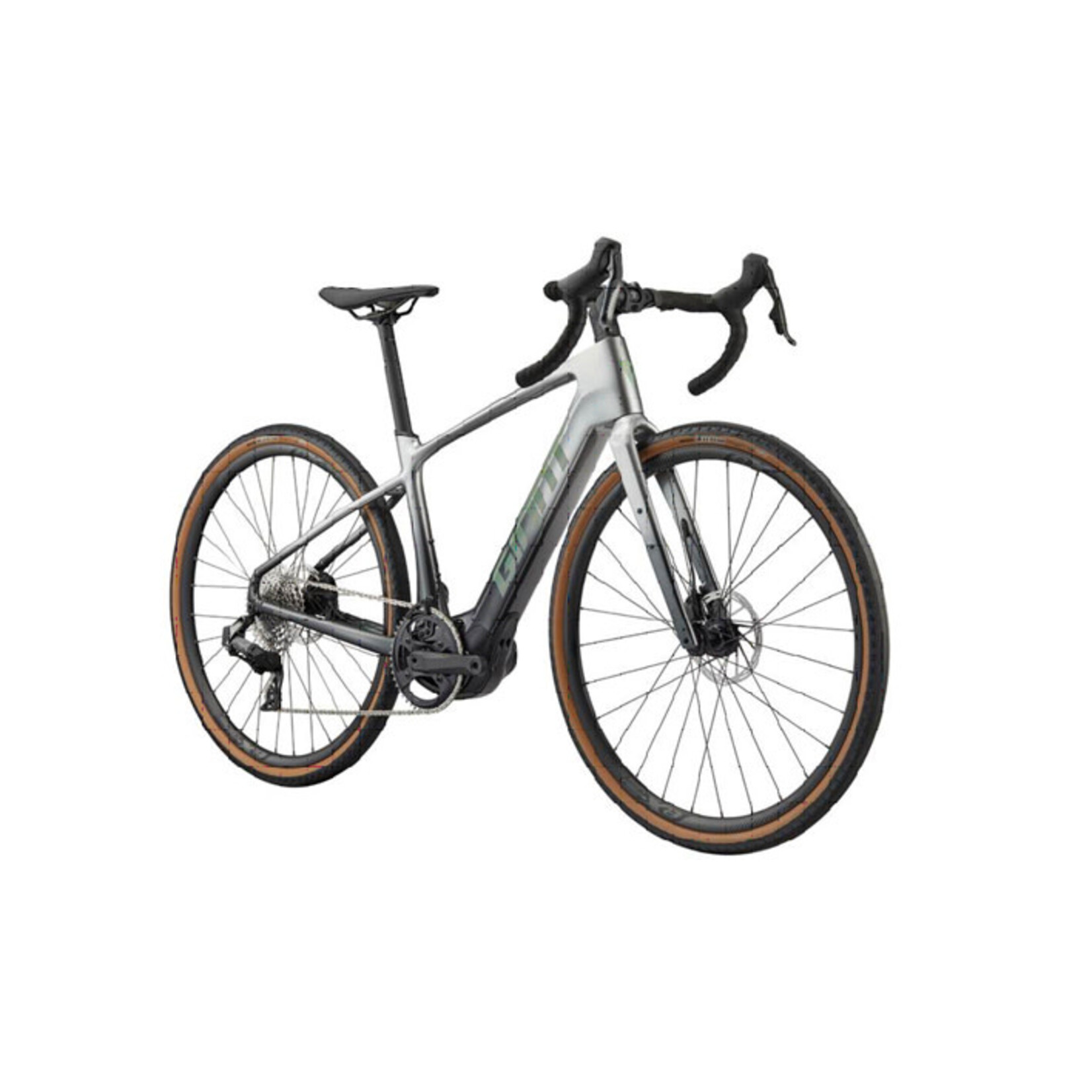

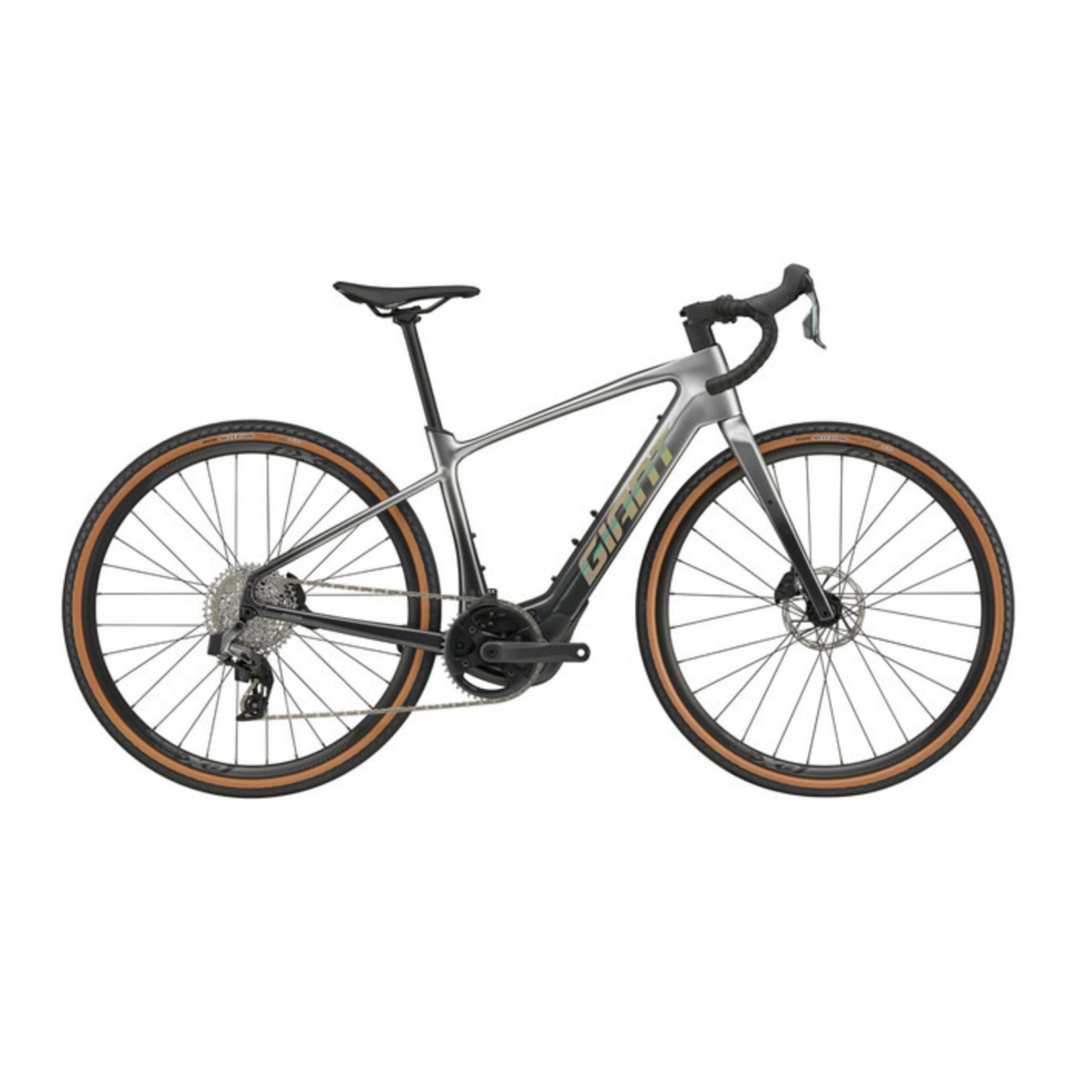

2026 Revolt E+ 1

Specifications


Colour	Galaxy Silver
Frame	ALUXX SL-grade aluminum,1.125" - 1.25" head tube, 12x142 thru-axle, KSA18 kickstand mount
Fork	Advanced-grade composite, 12x100mm thru-axle
Shock	N/A
Handlebar	Giant Contact XR D-Fuse, 31.8mm
Stem	Giant Contact AeroLight, -10 degree
Seatpost	Giant D-Fuse, alloy, 14mm offset
Saddle	Giant Approach
Pedals	N/A
Shifters	N/A
Front Der.	N/A
Rear Der.	SRAM Rival XPLR AXS D1
Brakes	SRAM Rival hydraulic SRAM PaceLine rotors [F] 160mm, [R] 160mm
Brake Levers	SRAM Rival AXS E1
Cassette	SRAM XPLR XG-1251, 12-speed, 10x44
Chain	SRAM Rival E1
Crankset	FSA E-crank alloy, SRAM X-SYNC chain ring 46t, 107BCD
Bottom Bracket	N/A
Rims	Giant eX 2 Disc wheelset, alloy, tubeless ready, 22mm IW, 24mm H
Hubs	Giant eTracker, [F] 100x12mm thru-axle, [R] 142x12mm thru-axle
Spokes	Sapim [F] Race, [R] E-Lite, e-bike optimized
Tires	Maxxis Receptor, 700X40c, folding, TLR, EXO, 120TPI

E-Bike Technology

Extras	Tubeless kit (liquid, valves, levers, manual, tool)
Motor	SyncDrive Sport2, 75Nm, powered by Yamaha
Controls	Mode support switch from SRAM Blips, 5 power levels plus Smart Assist auto mode
Display	RideControl GO, frame integrated LED console optional ANT+ wireless display compatible
Battery	EnergyPak 400Wh, alloy casing with highest safety standard (EN50604), CO2 neutral production EnergyPak Plus 200Wh range extender compatible
