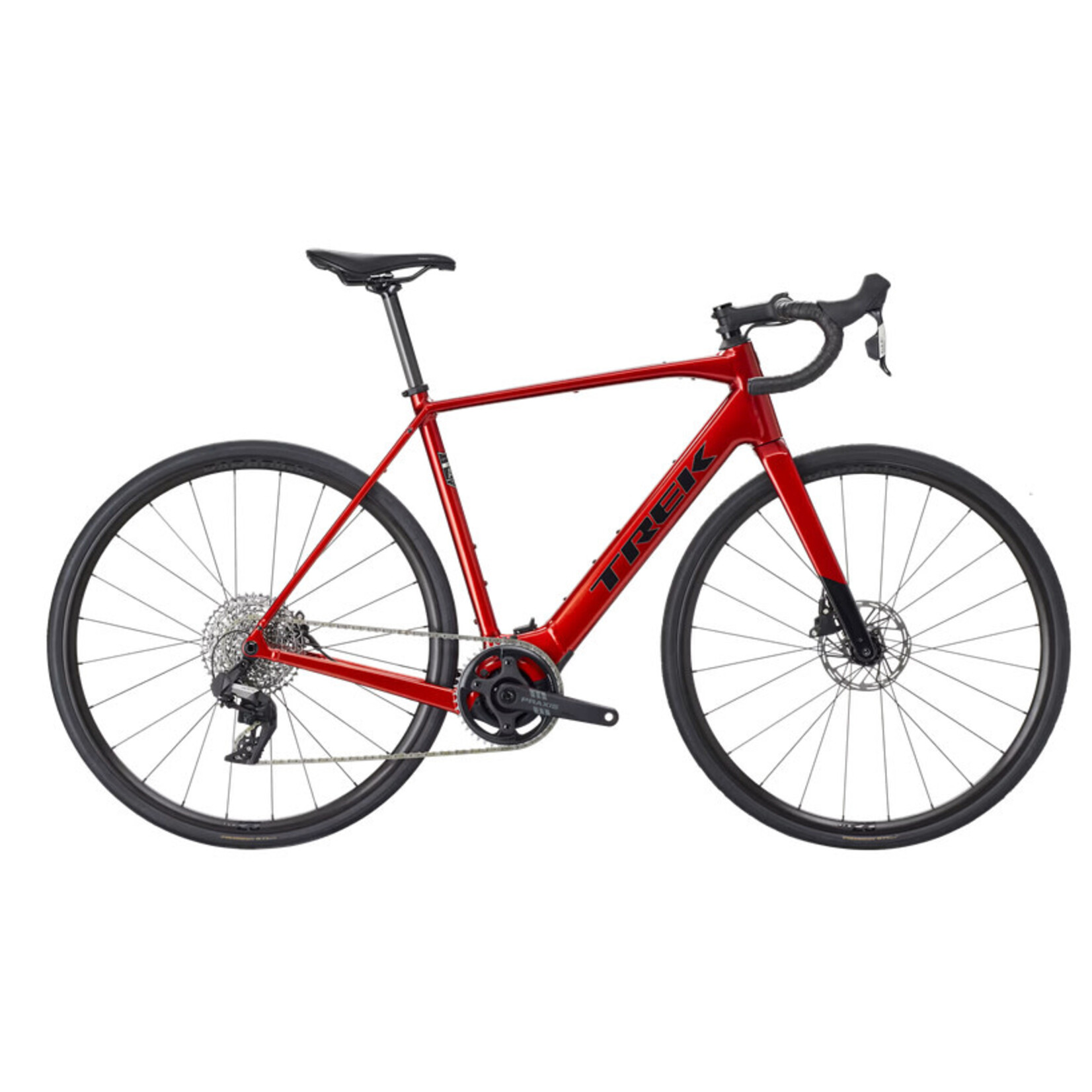

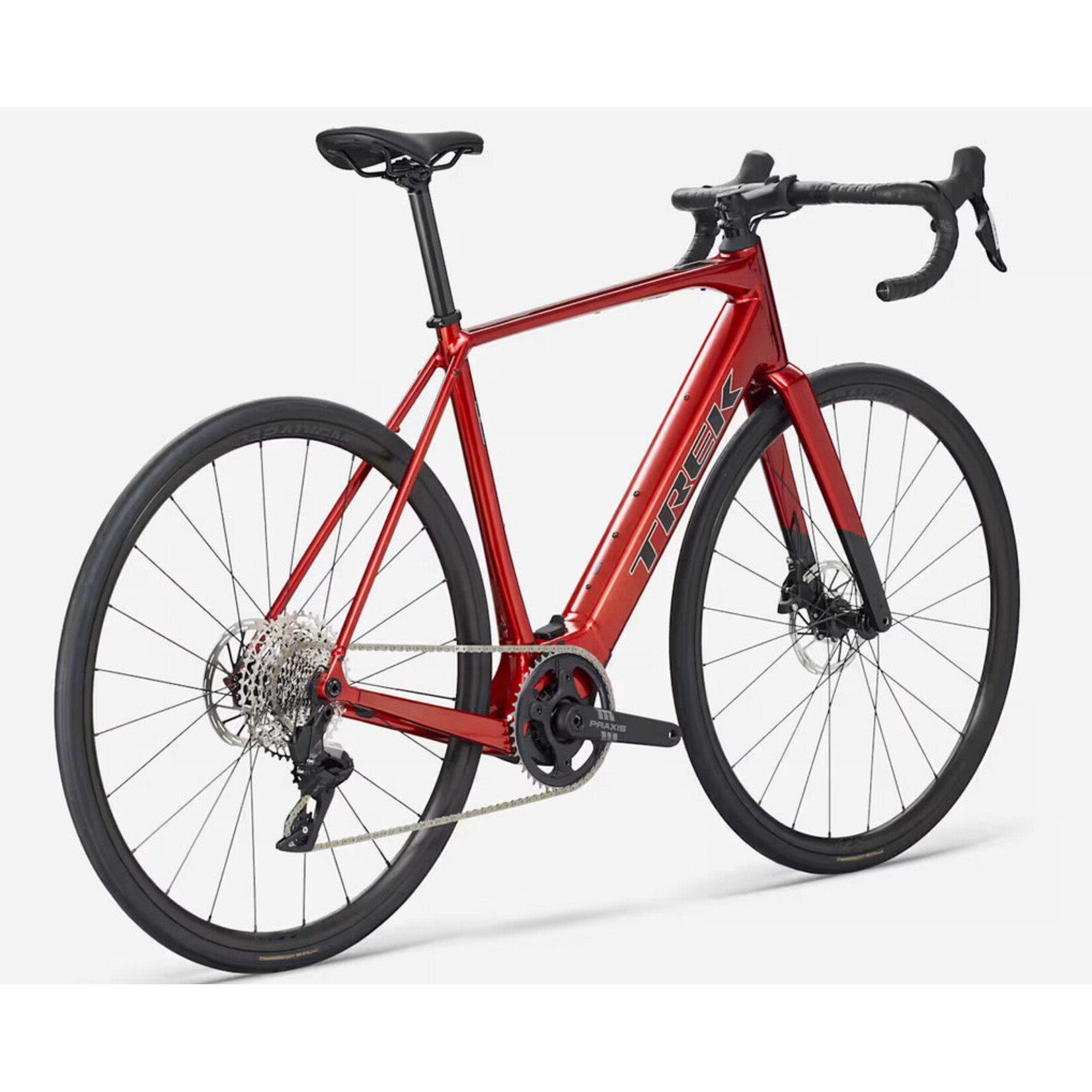

Domane+ ALR 6 AXS

Domane+ ALR 6 is an aluminum electric road bike that makes flying up climbs and taking the long way home a breeze. Its TQ HPR60 motor gives you a smooth, quiet, and natural-feeling boost, while a wireless SRAM Apex XPLR AXS drivetrain delivers smooth, customizable shifting.

Overview

Frame: 300 Series Alpha Aluminum, TQ drive system, hidden fender mounts, rack mounts, integrated frame bag mounts, internal cable routing, flat mount disc, integrated chainkeeper, UDH, 142x12mm chamfered thru axle
Fork: Domane+ carbon, tapered carbon steerer, fender mounts, flat mount disc, 12x100mm thru axle

Weight: ML - 14.24 kg / 31.4 lbs (with TLR sealant, no tubes)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

Battery: TQ 360Wh
Charger: TQ 4A charger
Controller: TQ color LED display with Bluetooth & ANT+ connectivity
Computer: TQ LED display with Bluetooth & ANT+ connectivity

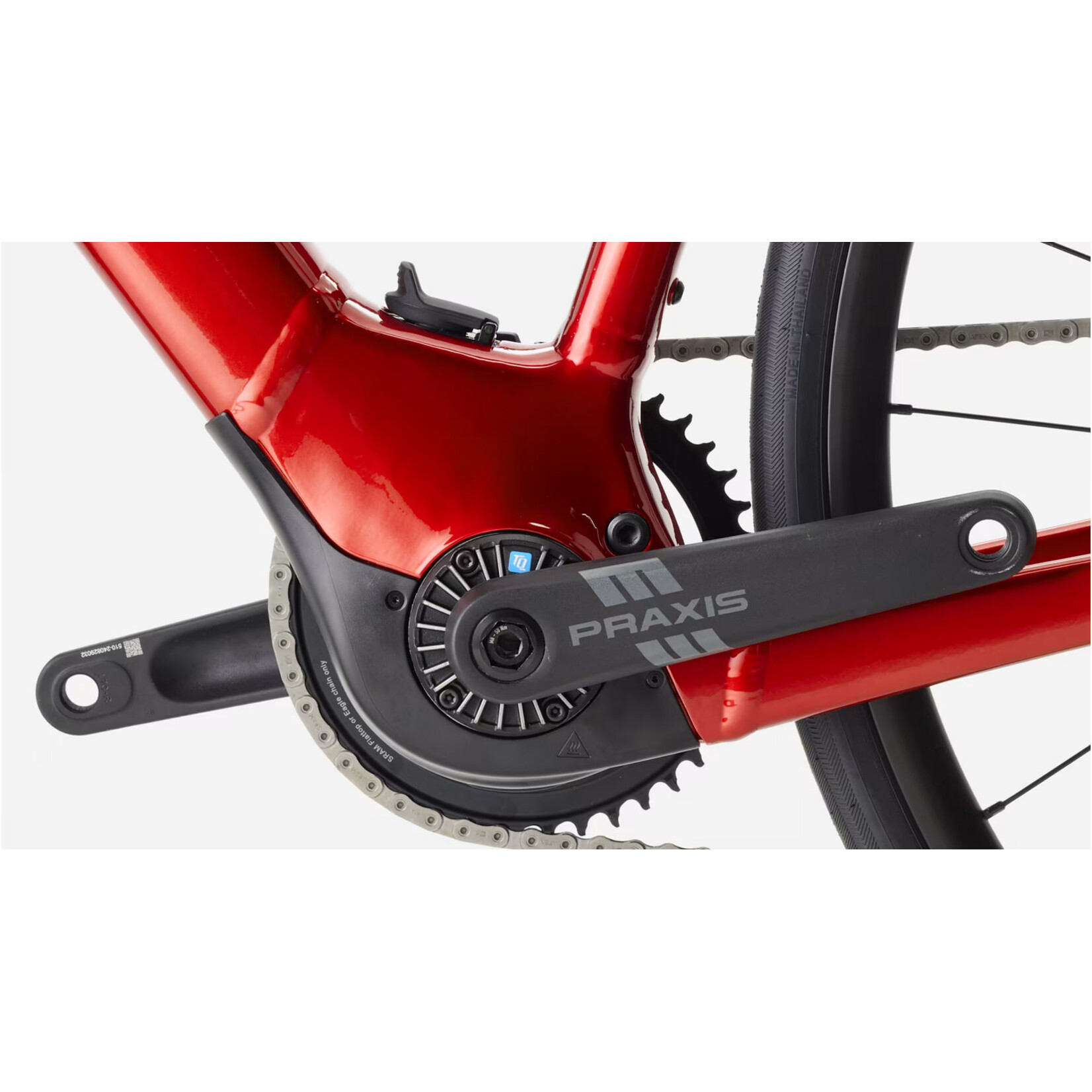

Motor: TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
E-bike Classification: Class 1

Shifter: SRAM Apex AXS, 12 speed

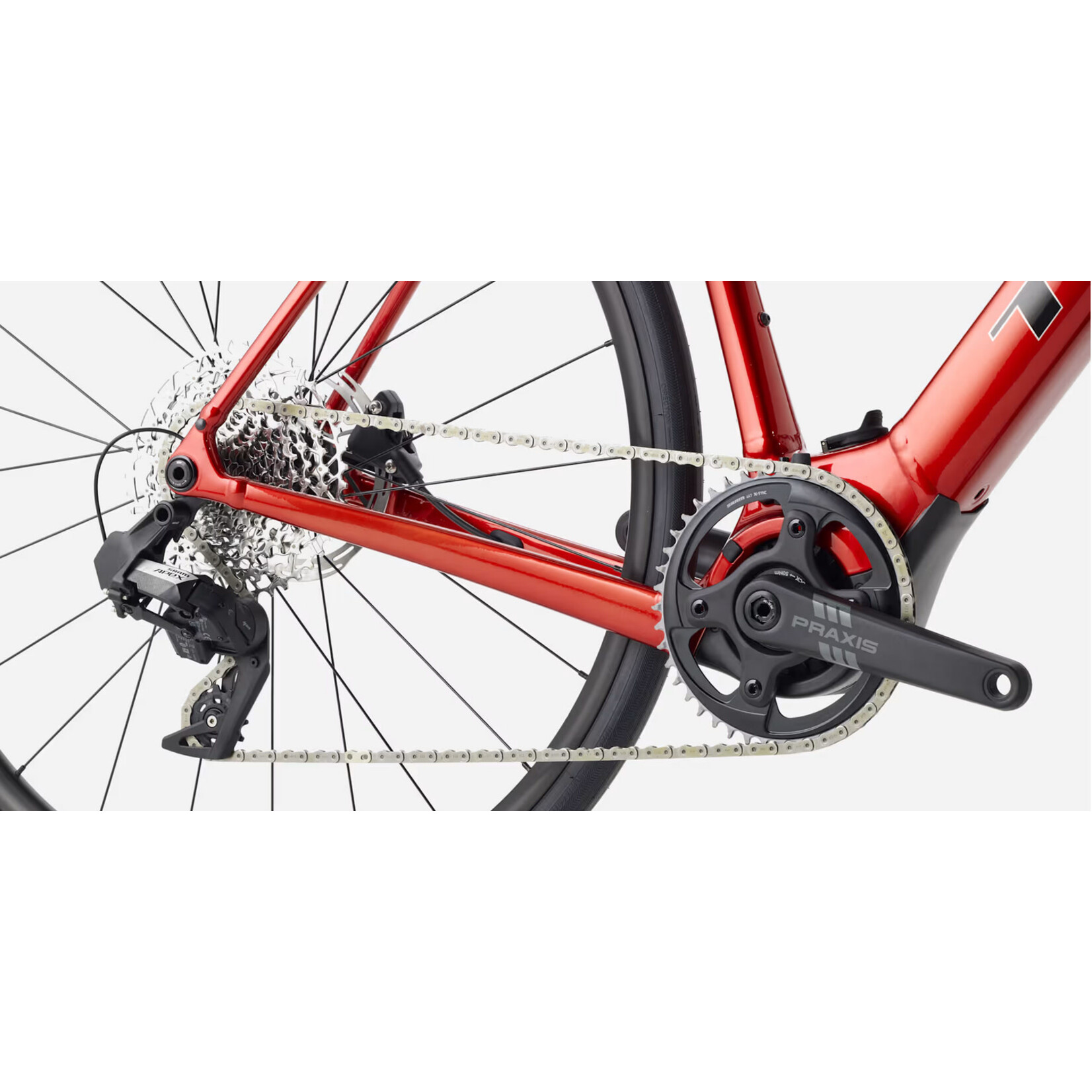

Rear derailleur: SRAM Apex XPLR eTap AXS, 44T max cog
*Crank: Size: XS, S

Praxis Alloy, 165mm length

Size: M, ML

Praxis Alloy, 170mm length

Size: L, XL

Praxis Alloy, 172.5mm length
Cassette: SRAM XPLR PG-1231, 11-44, 12 speed
Chain: SRAM Apex, 12 speed
Max chainring size: 1x: 46T

Hub front: Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
Skewer front: Bontrager Switch chamfered thru axle
Skewer rear: Bontrager Switch chamfered thru axle, removable lever
Rim: Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23mm width, Presta valve
Spokes: 14g stainless steel, black
Tire: Bontrager Kwaremont Pro GR, tubeless ready, folding bead, dual compound, 120 tpi, 700x32mm
Tire part: Bontrager TLR sealant, 180 ml/6 oz
Max tire size: 40mm without fenders, 35mm with fenders

Saddle: Verse Short Comp, steel rails, 145mm width
Seatpost: Bontrager carbon, 27.2mm, 8mm offset, 330mm length

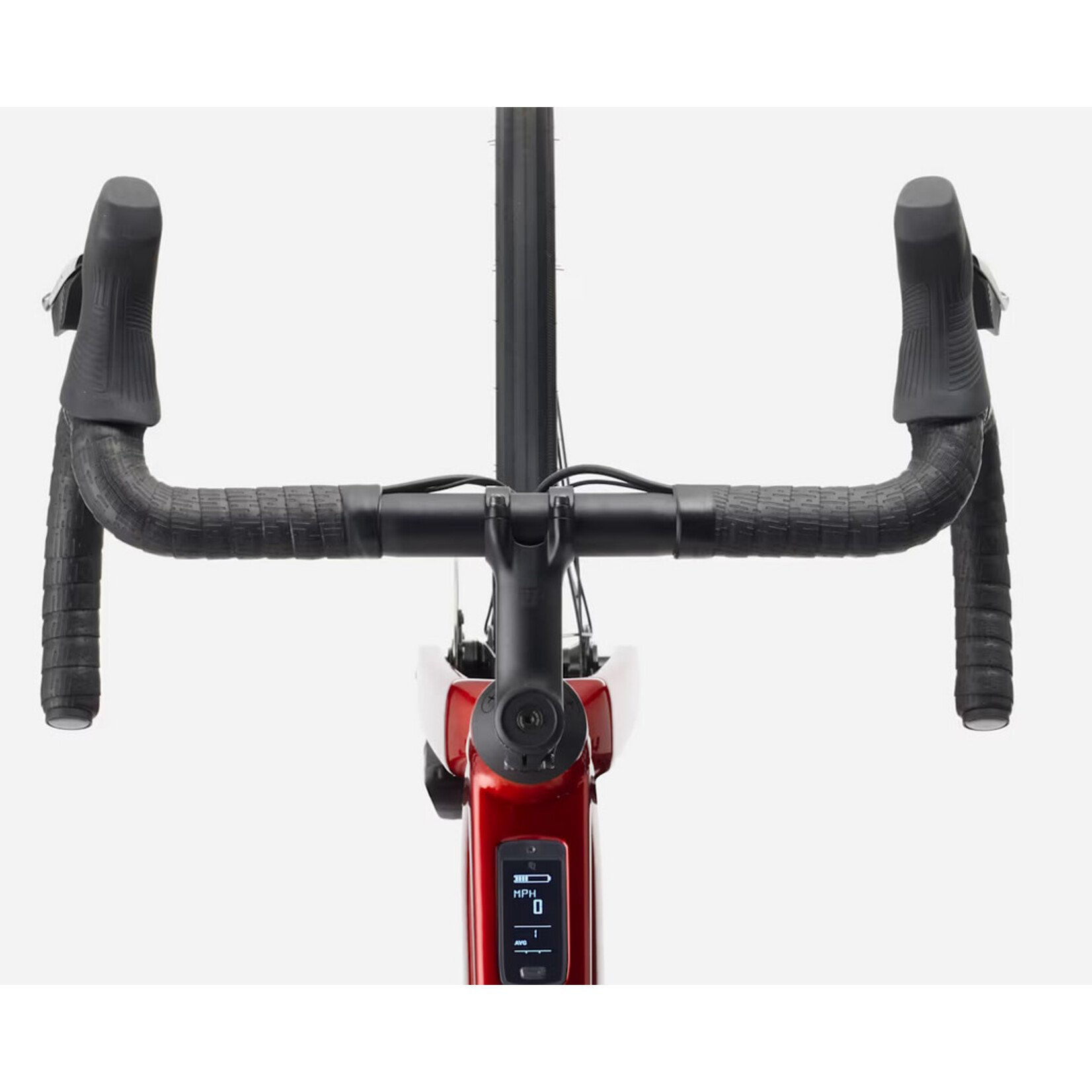

*Handlebar: Size: XS
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drop width

Size: S
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop width

Size: M, ML
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop width

Size: L, XL
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width
Handlebar tape: Trek EcoTack
*Stem: Size: XS
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length

Size: S
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length

Size: M
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length

Size: ML, L
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length

Size: XL

Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length
Brake: SRAM Apex AXS hydraulic disc, flat mount
Brake rotor: SRAM Paceline, rounded, centerlock, 160mm
Rotor size: Max brake rotor sizes: 160mm front & rear
