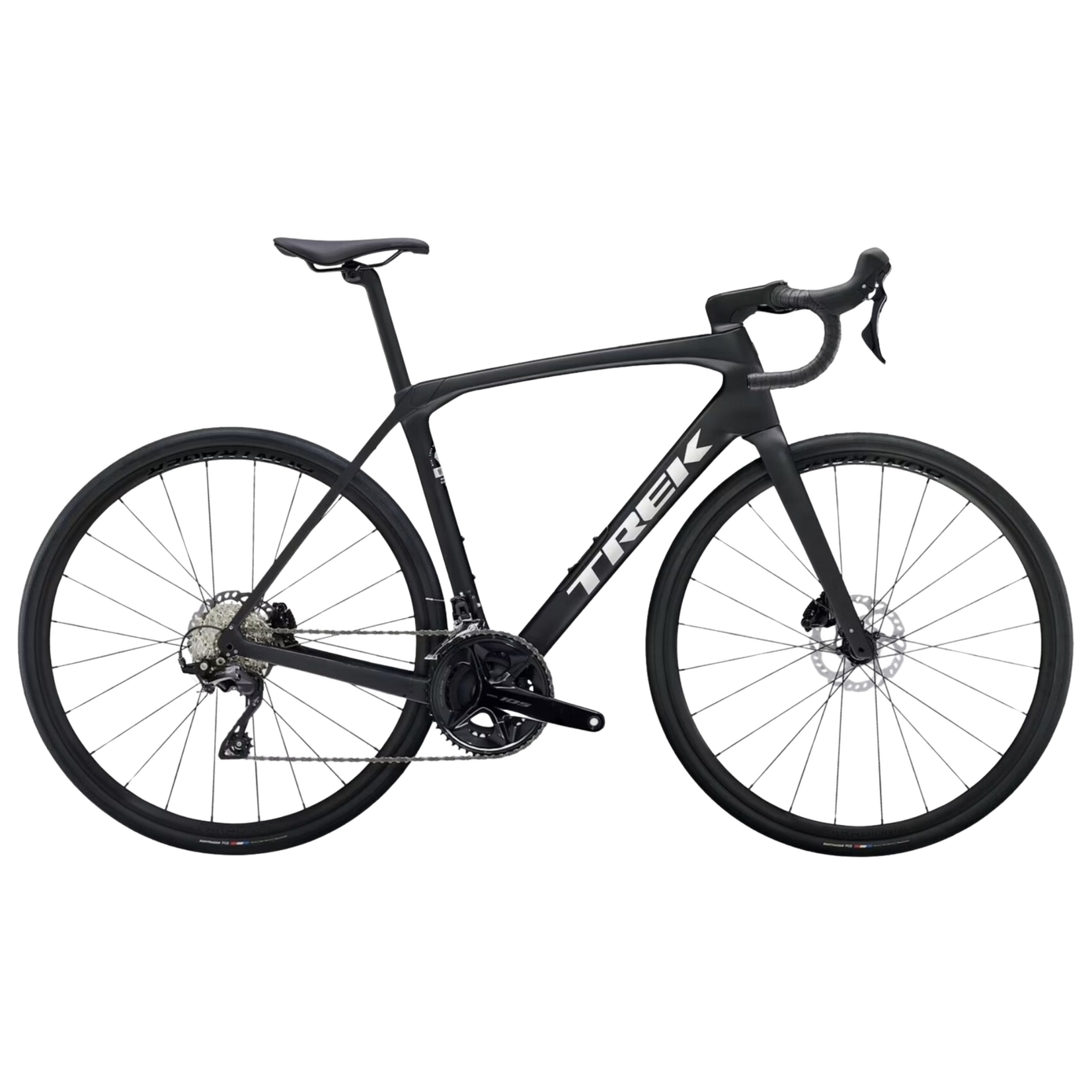

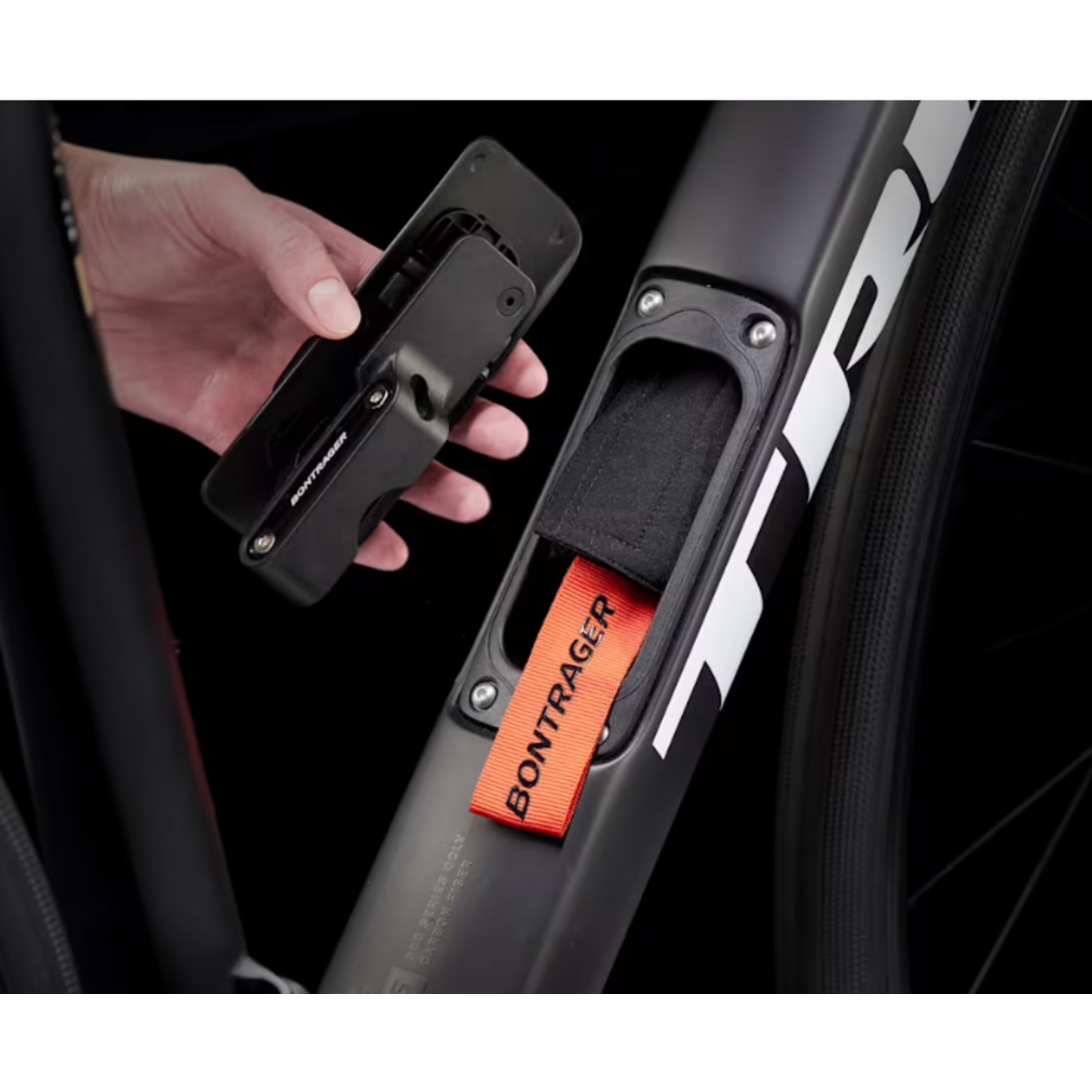

Domane SL 5 is ready to comfortably take on rough roads and long miles in comfort. The lightweight 500 Series OCLV Carbon frame has rear IsoSpeed to smooth out bumps in the road and reduce fatigue, and an integrated cockpit for a setup that looks as good as it feels. It features a reliable Shimano 105 drivetrain, and an easy-access internal storage compartment for stowing ride essentials. Plus, lofty 38mm tire clearance lets you take on any road from tarmac to light gravel.

Frame
500 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle

Fork
Domane SL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle

Weight
56 - 9.02 kg / 19.89 lbs (with TLR sealant, no tubes)

Shifter
Shimano 105 R7120, 12 speed
Front derailleur
Shimano 105 R7100, braze-on, down swing
Rear derailleur
Shimano 105 R7100, 36T max cog

Crank
Size: 44, 47: Shimano 105 R7100, 50/34, 165mm length
Size: 50, 52: Shimano 105 R7100, 50/34, 170mm length
Size: 54, 56: Shimano 105 R7100, 50/34, 172.5mm length
Size: 58, 60, 62: Shimano 105 R7100, 50/34, 175mm length

Bottom bracket
Praxis, T47 threaded, internal bearing

Cassette
Shimano 105 7101, 11-34, 12 speed

Chain
Shimano SLX M7100, 12 speed

Max chainring size
1x: 48T, 2x: 52/36

Hub front
Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle

Skewer front
Bontrager Switch thru axle

Hub rear
Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle

Skewer rear
Bontrager Switch thru axle, removable lever

Rim
Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve

Tire
Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32mm

Tire part
Bontrager TLR sealant, 180 ml/6 oz

Rim strip
Bontrager TLR

Max tire size
38mm without fenders, 35mm with fenders

Saddle
Size: 44, 47, 50, 52: Verse Short Comp, steel rails, 155mm width
Size: 54, 56, 58, 60, 62: Verse Short Comp, steel rails, 145mm width

Seatpost
Size: 44, 47, 50, 52, 54, 56: KVF aero carbon seatpost, 20mm offset, 280mm length
Size: 58, 60, 62: KVF aero carbon seatpost, 20mm offset, 320mm length

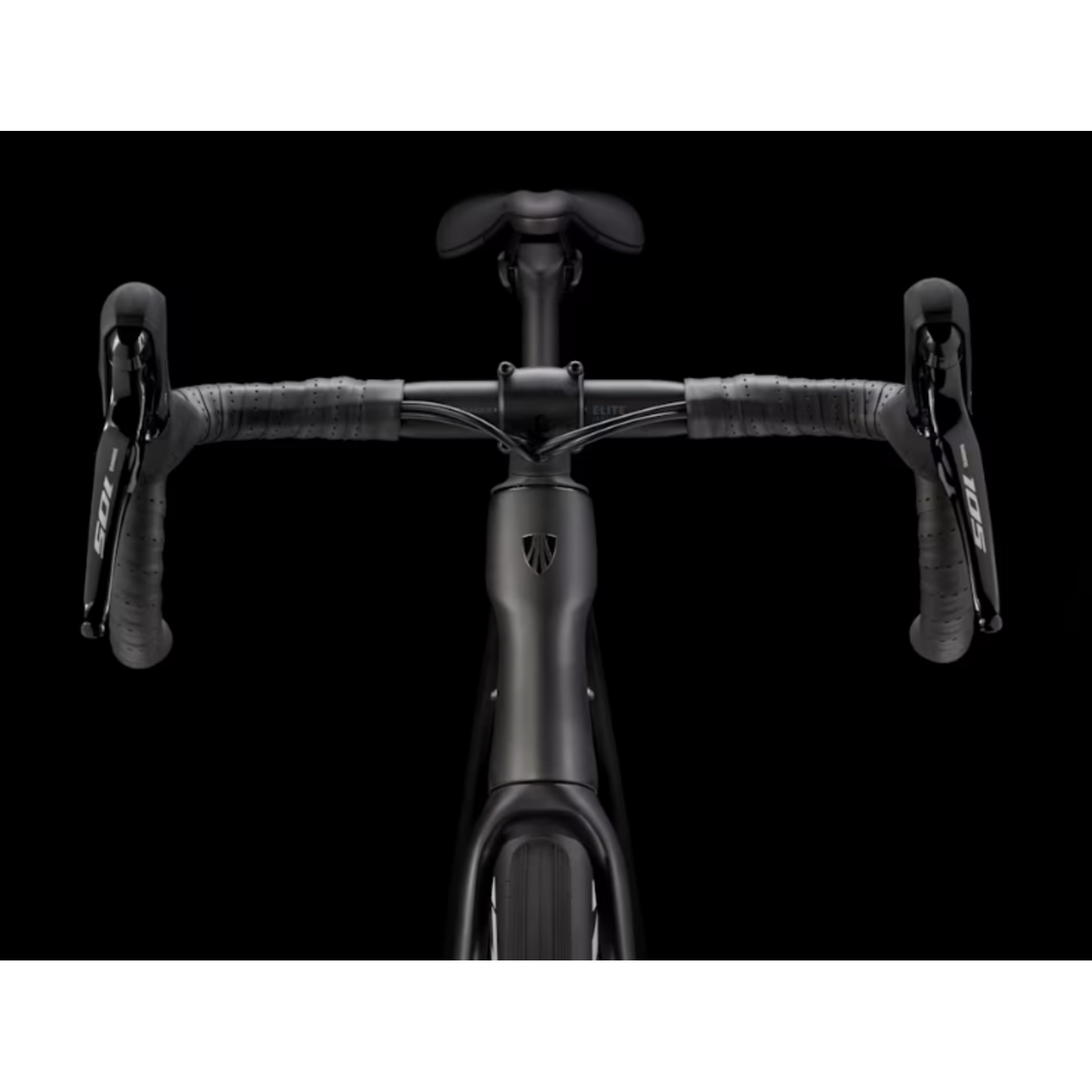

Handlebar
Size: 44, 47: Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 36cm width
Size: 50: Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 38cm width
Size: 52: Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 40cm width
Size: 54, 56: Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 42cm width
Size: 58, 60, 62: Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 44cm width

Handlebar tape
Bontrager Supertack Perf tape

Stem
Size: 44 Trek RCS Pro, -7 degree, 60mm length
Size: 47 Trek RCS Pro, -7 degree, 70mm length
Size: 50 Trek RCS Pro, -7 degree, 80mm length
Size: 52, 54 Trek RCS Pro, -7 degree, 90mm length
Size: 56, 58 Trek RCS Pro, -7 degree, 100mm length
Size: 60, 62 Trek RCS Pro, -7 degree, 110mm length

Brake
Shimano 105 hydraulic disc, flat mount

Brake rotor
Shimano RT70, centerlock, 160mm

Rotor size
Max brake rotor sizes: 160mm front & rear
