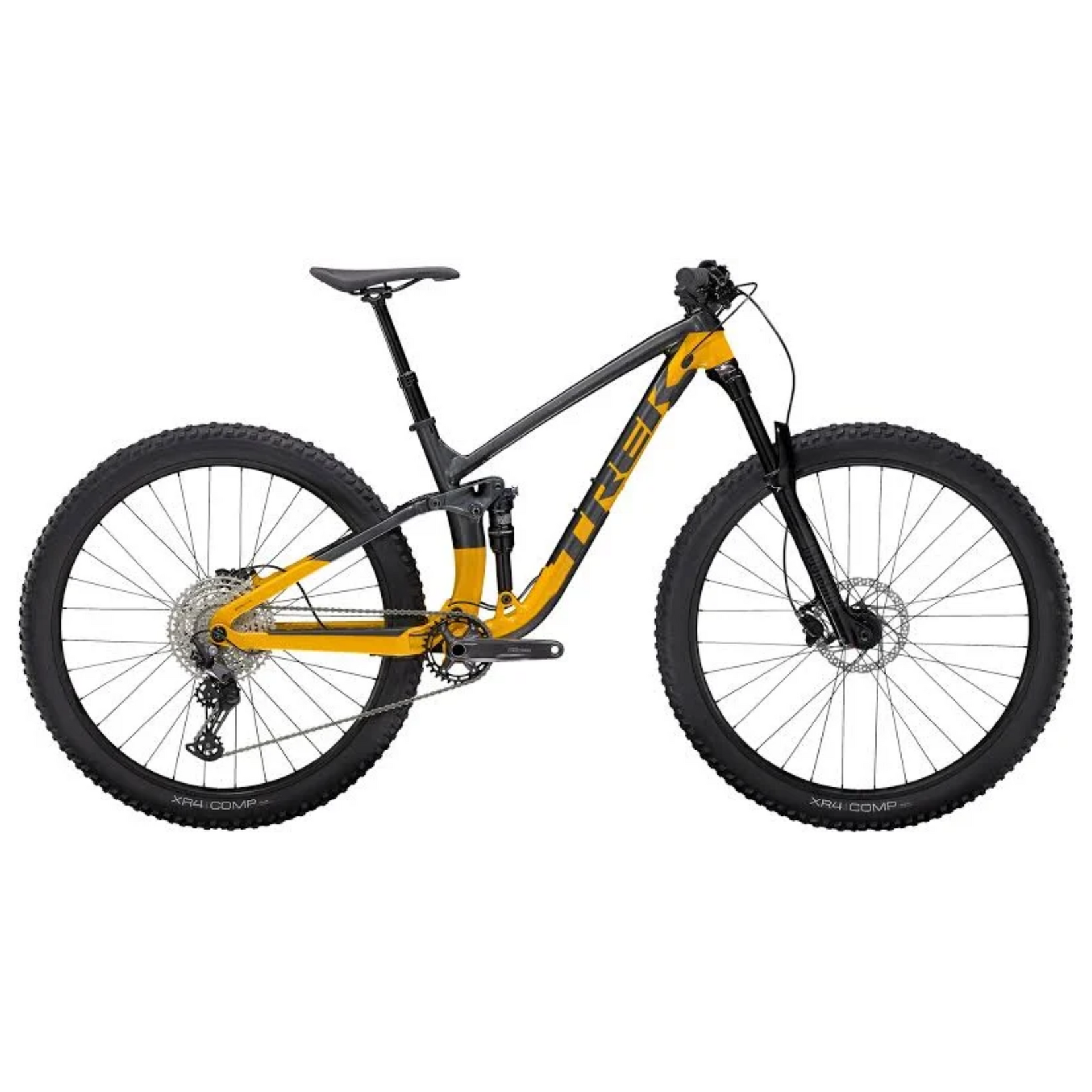

Fuel EX 5 is a full-suspension trail bike that's ready to handle it all. With trail-taming 140mm front and 130mm rear suspension, a Shimano 1x12 drivetrain, a dropper post for getting low on descents, and hydraulic disc brakes, the Fuel EX 5 hits the mark as a high-value, high-performance mountain bike with exceptional versatility.

Specs

Frame

Alpha Platinum Aluminum, tapered head tube, Knock Block, Control Freak internal routing, downtube guard, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130mm travel

Fork

RockShox Recon Silver, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, Maxle Stealth, 140mm travel

Rear Shock

Sizes X-Small & Small: X-Fusion Pro 2, 2-position damper, 210mm x 52.5mm
Sizes Small - X-Large: X-Fusion Pro 2, 2-position damper, 210mm x 55mm

Rims

Alex MD35, tubeless compatible, 32-hole, 35mm width, presta valve

Hubs

Front: Bontrager alloy, 6-bolt, Boost110, 15mm thru axle
Rear: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle

Spokes

14g stainless steel

Tires

Sizes X-Small & Small: Bontrager XR4 Comp, wire bead, 30 tpi, 27.5x2.60"
Sizes Small - X-Large: Bontrager XR4 Comp, wire bead, 30 tpi, 29x2.60"

Bottom Bracket

Shimano MT500, 92mm, PressFit

Crankset

Shimano MT511, 30T steel ring, 52mm chainline

Shifters

Shimano Deore M6100, 12 speed

Rear Derailleur

Shimano Deore M6100, long cage

Cassette/Freewheel

Shimano Deore M6100, 10-51, 12 speed

Chain

Shimano Deore M6100, 12 speed

Brakes

Shimano hydraulic disc, MT201 lever, MT200 caliper

Rotors

Shimano RT56, 6-bolt, 180mm

Handlebars

Bontrager alloy, 31.8mm, 15mm rise, 750mm width

Tape/Grips

Bontrager XR Trail Comp, nylon lock-on

Stem

Bontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree, 50mm length

Headset

Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom

Seatpost

TranzX JD-YSP18, internal routing, 31.6mm

Saddle

Bontrager Arvada, steel rails, 138mm width

Pedals

Sold separately
