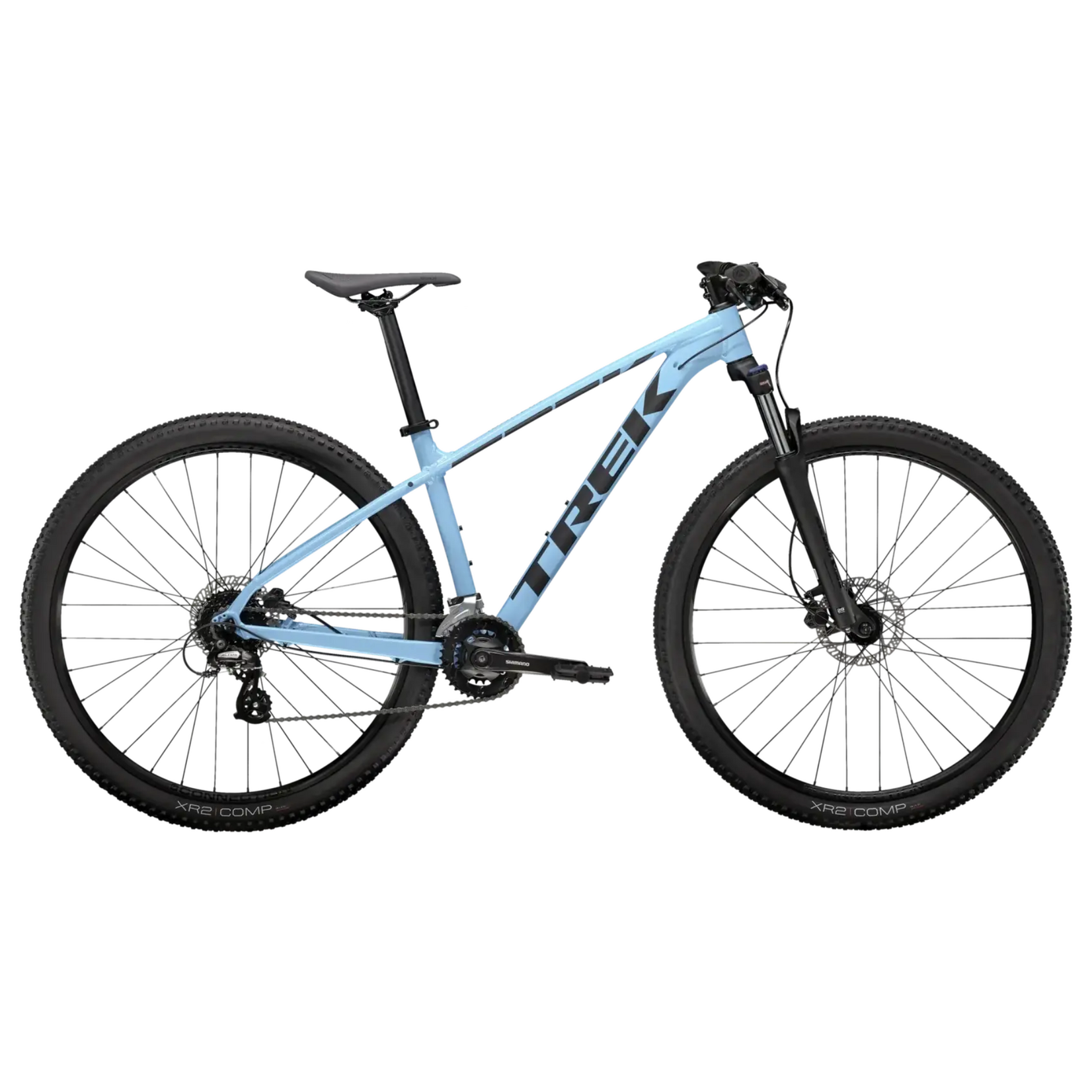

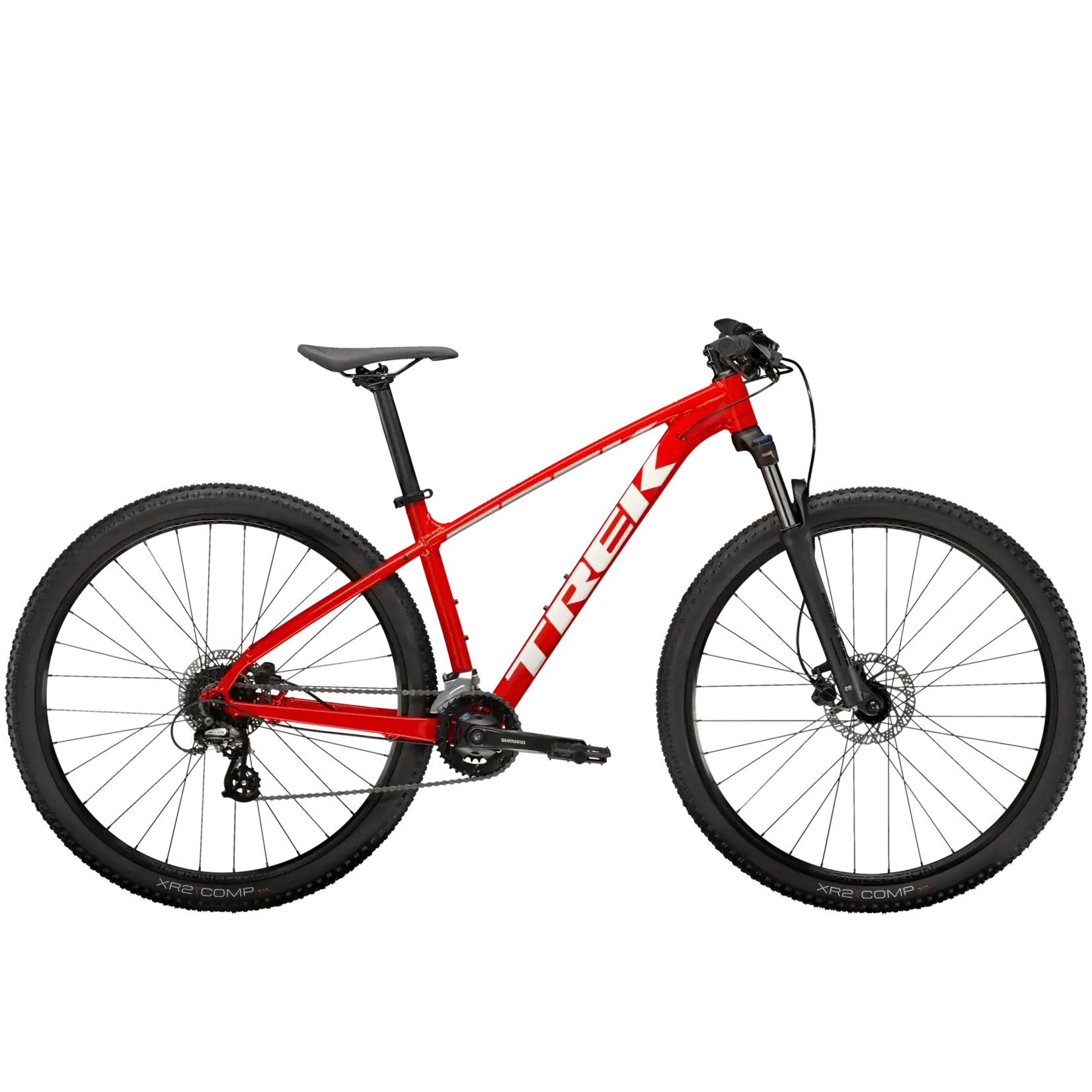

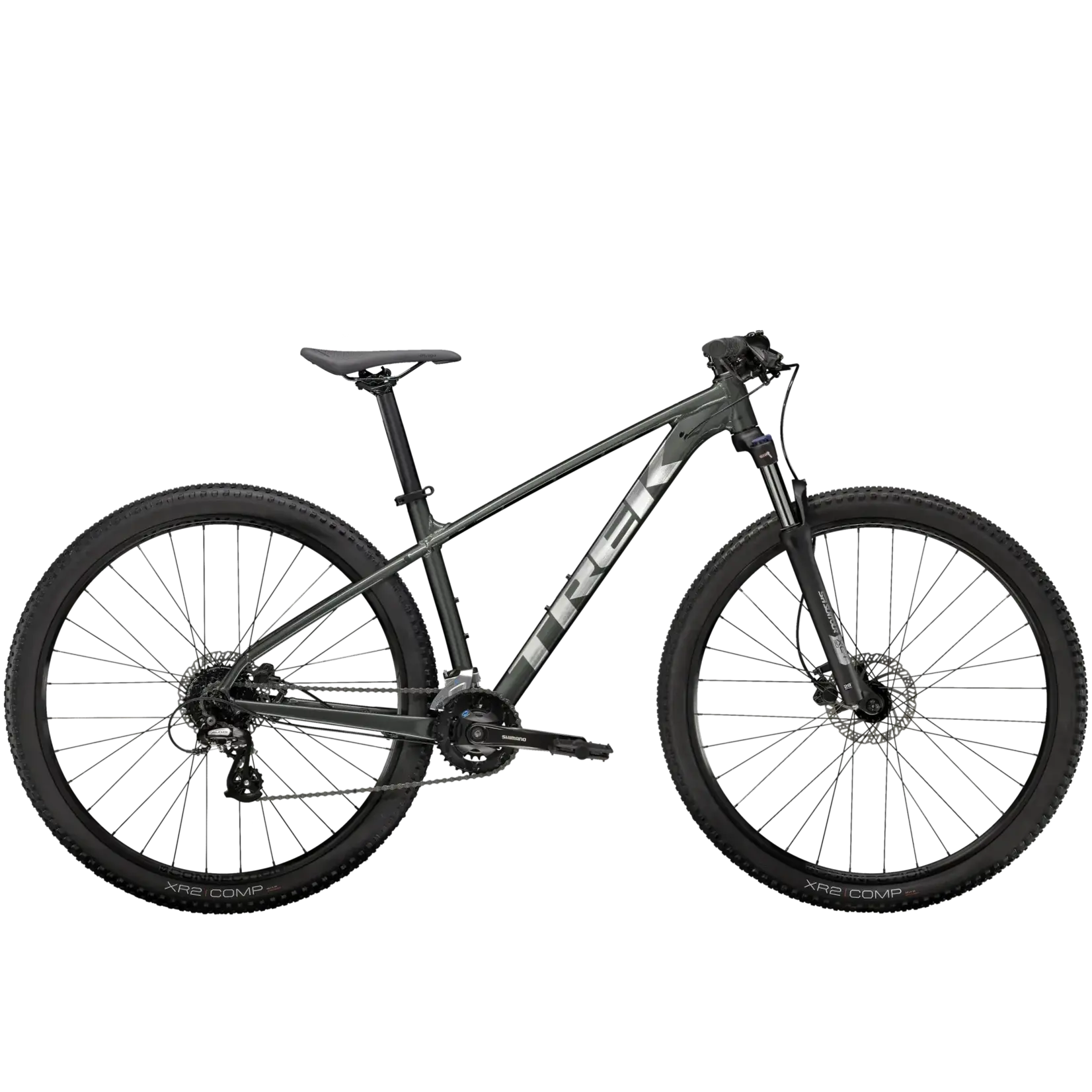

Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. A suspension fork, 2x8 drivetrain, and mounts for a rack and kickstand make it an ideal choice for new trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.
Specs
Frame
Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR
Fork
XX-Small = SR Suntour XCM 30, coil spring, lockout, preload, 100mm QR, 100mm travel
X-Small = SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5" wheel, 100mm QR, 80mm travel
Small = SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5" wheel, 100mm QR, 100mm travel
M, ML, L, XL, XXL = SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 100mm QR, 100mm travel
Rims
Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve (XXS = alloy)
Hubs
Front: Formula DC-20, alloy, 6-bolt, 5x100mm QR
Rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
Spokes
14g stainless steel
Tires
Bontrager XR2 Comp, wire bead, 30 tpi (XXS = 26 x 2.20"; XS, S = 27.5 x 2.20"; M, ML, L, XL, XXL = 29 x 2.20")
Bottom Bracket
VP BC73, 73mm, threaded cartridge
Crankset
XXS = Prowheel TM-CY10, 36/22, 160mm length
XS, S, M = Shimano M315, 36/22, 170mm length
ML, L, XL, XXL = Shimano M315, 36/22, 175mm length
Shifters
Shimano Altus M315, 8-speed
Front Derailleur
Shimano Altus M315, 34.9mm clamp, top swing, dual pull
Rear Derailleur
Shimano Altus M310
Cassette/Freewheel
Shimano HG200, 12-32, 8-speed
Chain
KMC Z8.3, 8-speed
Brakes
XXS, XS, S = Tektro HD-M276 hydraulic disc, short reach lever
M, ML, L, XL, XXL = Tektro HD-M275 hydraulic disc
Rotors
Shimano RT26, 6-bolt
Handlebars
Bontrager alloy, 31.8mm, 5mm rise, 720mm width (XXS, XS: 690mm)
Tape/Grips
Bontrager XR Endurance Comp, lock-on
Stem
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree
XXS = 35mm; XS = 50mm; S = 60mm; M = 70mm; ML, L = 80mm; XL = 90mm
Headset
Semi-integrated, 1-1/8"
Seatpost
Bontrager alloy, 31.6mm, 12mm offset
Saddle
Bontrager Arvada, steel rails, 138mm width
Pedals
VP-536 nylon platform
