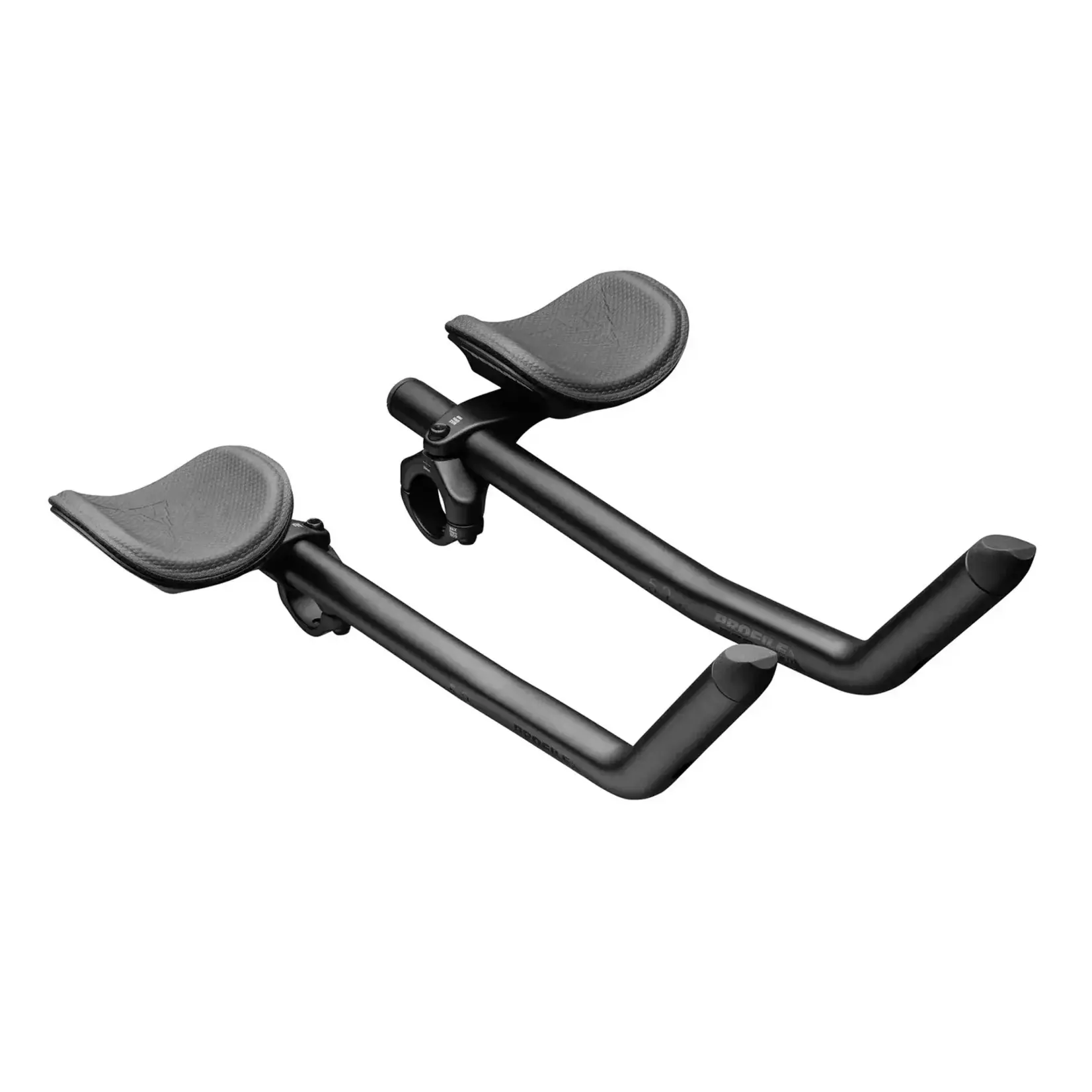

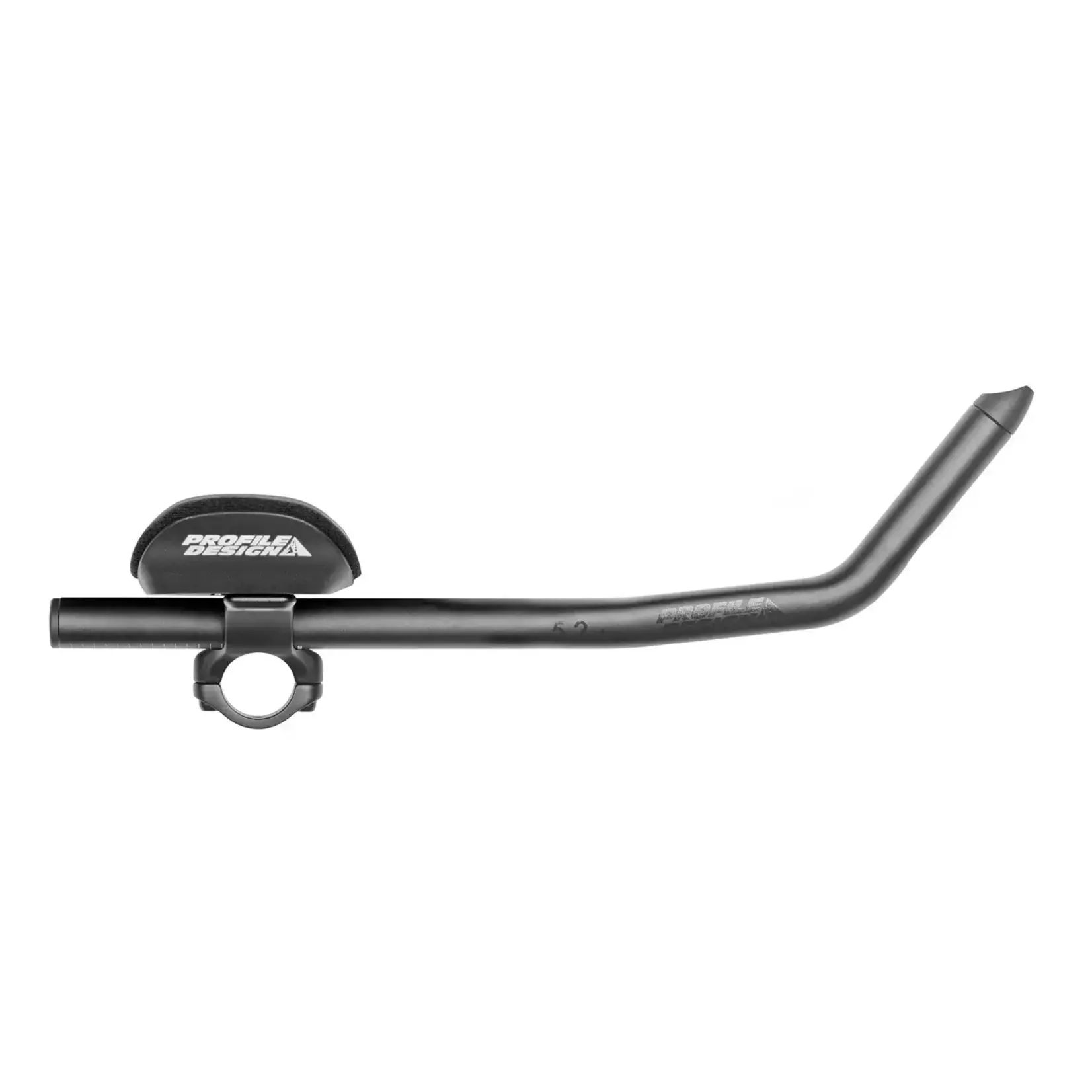

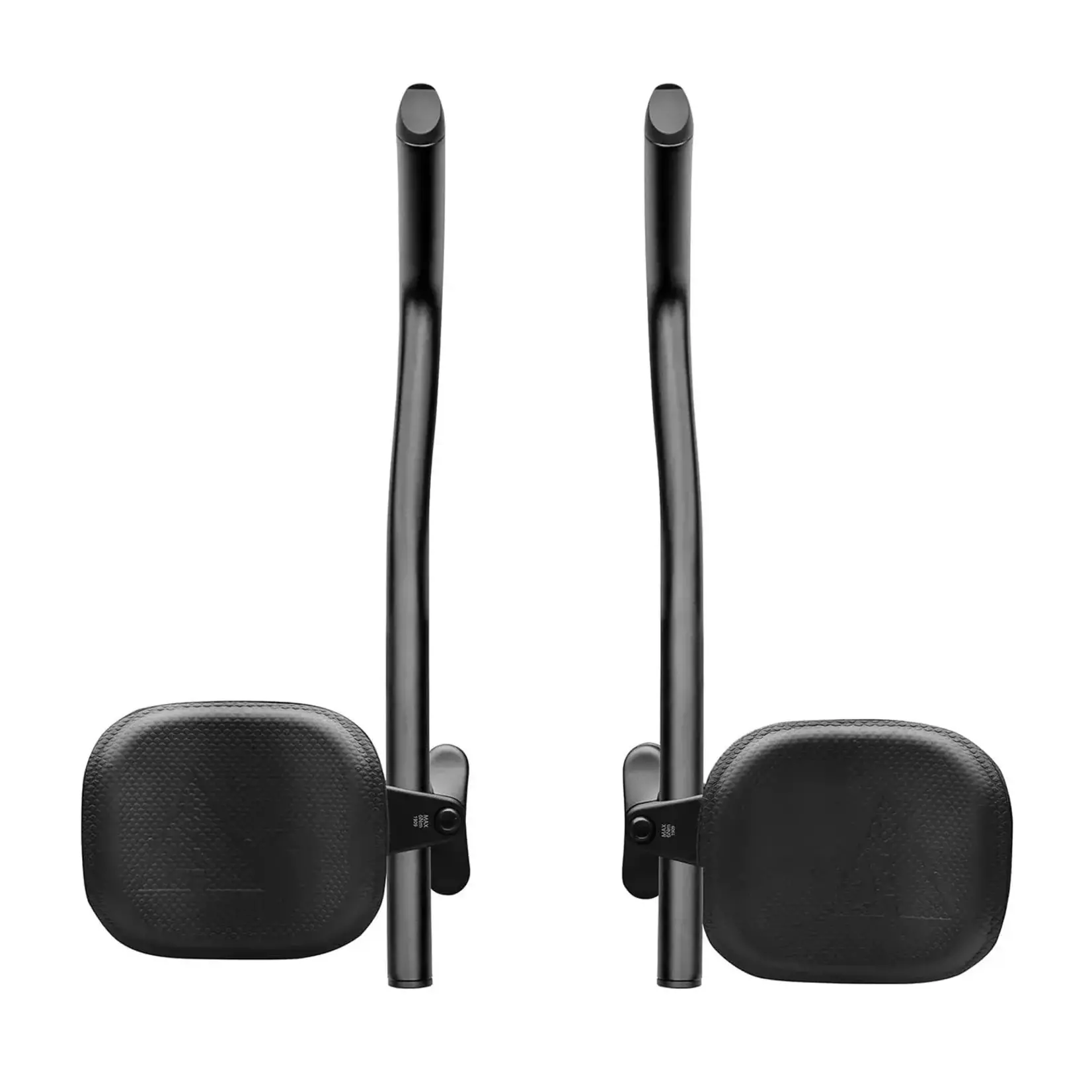

The Sonic/Ergo is designed to present minimal frontal area to create as little aerodynamic drag as possible. The Sonic bracket offers an extensive fit range, low weight and easy adjustment. Combining this with the Ergo armrest creates an aerobar that will aid most riders in optimizing their position for both speed and comfort.

The extension length and rotation can be easily adjusted using the top bolt. There are 100 distinct position options achievable just by moving the armrests. The 52a extensions have a 52° angle for the grip. The rider can choose whether to hold high for the shrugged position or low for a more open, head up position.

Specifications

• Colour: Anodized Matte Black
• Construction: 6061-T6 aluminum, pre-drilled for bar-end shifter cable routing
• Bracket: Sonic
• Armrest: Ergo / 10mm Pads
• Armrest Width: 124mm to 290mm in 18.5mm steps (with extensions at 100mm)
• Armrest Stack: Minimum 60mm up to 130mm (with risers)
• Extension Length: 400mm
• Extension Angle: 52°
• Extension Rise: 87mm
• Extension Offset: 15mm total
• Outer Diameter: 22.2mm
• Inner Diameter: 19.2mm
• Clamp Diameter: 31.8mm (26.0 w/Shims)
• Weight: 586g
